| Place of Origin: | China |
|---|---|
| Brand Name: | MCreat |
| Certification: | CE, ISO |
| Model Number: | MC-07210 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | negotiable |
| Packaging Details: | Carton |
| Delivery Time: | Depends on Order Quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100, 000PCS/Month |
| Type Of Sterilization:: | Ethylene Oxide Sterilization | Quality Guarantee Period:: | Five Years |
|---|---|---|---|
| Material: | Medical Grade PVC | Certificate: | CE/ISO13485 |
| OEM: | Printed Logo | Packaging: | Blister |
| High Light: | CE Certified Closed System Suction Catheter,Luer Lock Type Closed System Suction Catheter,Luer Lock CE Certified 14 fr suction catheter |
||

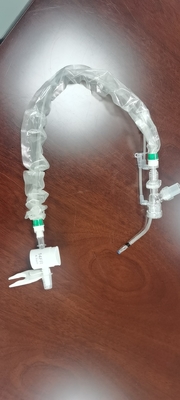

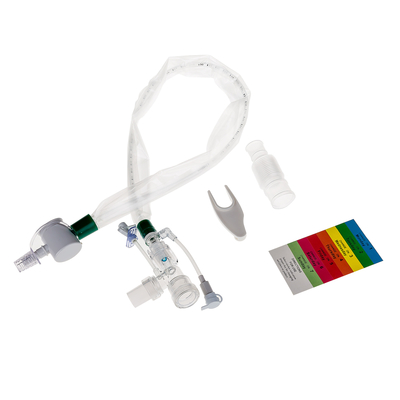

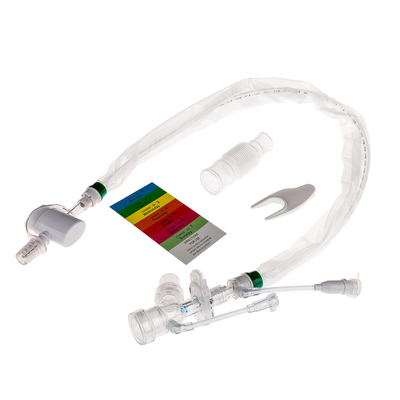

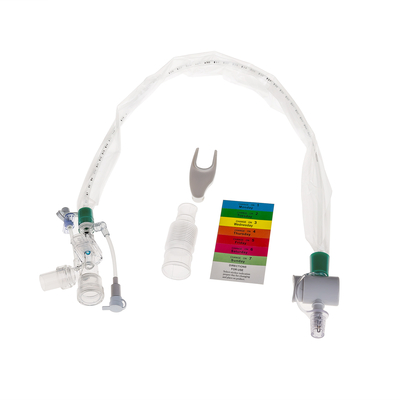

Closed Suction Catheter(Y-Piece) 72hours for Adult, Push Switch & Luer Lock type
Video:
Features
- Continuous Breathing
Simultaneous ventilation

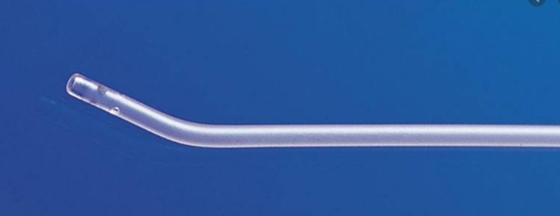

- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.

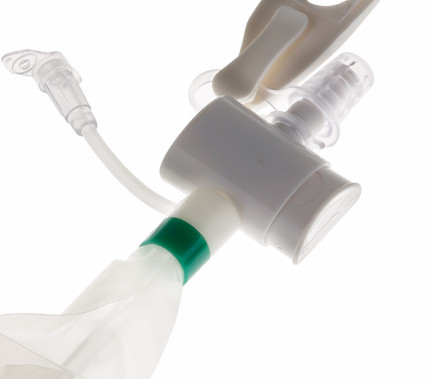

- Double Swivel Connector
15mm connector of Double Swivel
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-infection.
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs/inner box, Outer packing: 100pcs/shipping carton
-Delivery Time: Within 20 days. It depends on the quantity of order.
Product Description
| Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
| Black | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 10Fr (3.35mm) | 600mm | MC-07250 |
| White | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 12Fr (4.05mm) | 600mm | MC-07251 |
| Green | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 14Fr (4.75mm) | 600mm | MC-07252 |
| Orange | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 16Fr (5.45mm) | 600mm | MC-07253 |
We can produce the closed suction catheter according to customers' requirements!!!
-Instructions for Use
*Set up Procedure
1. Inspect the product before use. Do not use it if the package is not intact.
2. Open the sealed package and remove the product.
3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.
4. Connect ventilator tube to the Revolvable Ventilator Connector.
5. Attach the date label to the color ring.
6. Before suctioning commences, ensure that the cap of the MDI Port and Irrigation Port is closed.
7. Before suctioning: please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/Tracheostomy tube.
*Suctioning Procedure
Caution-always use the recommended vacuum levels./Consider length of suctioning time
1. Grip the three-way adaptor in one hand and use the other hand to feed the suction catheter into the Endotracheal tube/Tracheostomy tube to the required depth.
Depth markers can be visible through the protective cover for your guidance.
2. Once the suction catheter is in the desired position /depth depress the vacuum control valve to begin suctioning.
3. Remove the suction catheter until the protective sleeve is straight.
4. Repeat steps1-3 as necessary.
