| Place of Origin: | China |
|---|---|
| Brand Name: | MCreat |
| Certification: | CE, ISO |
| Model Number: | MC-02441 |
| Minimum Order Quantity: | 1000 pieces |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | Depends on Order Quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100, 000PCS/Month |
| Type Of Sterilization:: | Ethylene Oxide Sterilization | Quality Guarantee Period:: | Five Years |
|---|---|---|---|
| Material: | Medical Grade PVC | OEM: | Printed Logo |
| Instrument Classification: | Class II | Certificate: | CE/ISO13485 |
| Size: | 5Fr | ||
| High Light: | 1.7mm Dia Closed System Suction Catheter,Class II Consumable Closed System Suction Catheter,Class II ISO13485 closed suction circuit |
||

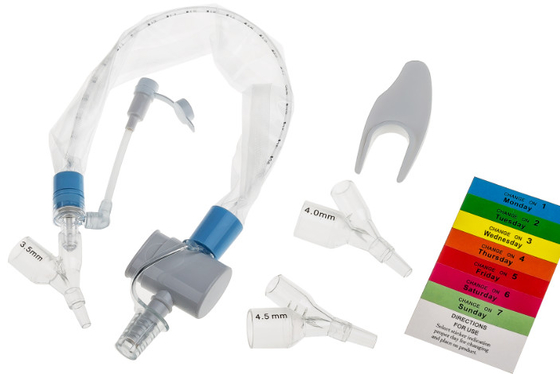

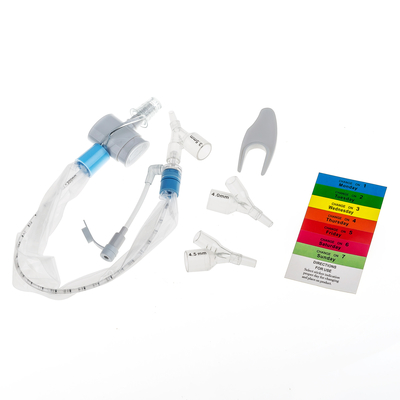

Closed Suction System Child Type 24 Hours with 3 Y Connectors 5Fr 300mm
Feature
- Continuous Breathing
Simultaneously ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Y Connector Type
ET "Y" neonatal and pediatric care adapters are available for 5, 6, 7, 8, French sizes closed suction catheter.
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.
-Irrigation Port with Non-Return Valve
The non-return valve prevents backflow leakage during washing and aerosolized secretion contamination.
Packaging & Delivery
- Packaging Details
- Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton
- Delivery Time: Within 20 days. It depends on the quantity of order
Product Description
| Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
| Grey | Neonatal/24H | "Y" Endotracheal Tube Adapter (2mm, 2.5mm, 3.0mm) | 5Fr (1.7mm) | 300mm | MC-02440 |
| Light Green | Neonatal/24H | "Y" Endotracheal Tube Adapter (2.5mm,3mm,3.5mm) | 6Fr (1.95mm) | 300mm | MC-02441 |
| Ivory | Pediatric/24H | "Y" Endotracheal Tube Adapter (2.5mm, 3mm, 3.5mm) | 7Fr (2.3mm) | 300mm | MC-02442 |
| Light Blue | Pediatric/24H | "Y" Endotracheal Tube Adapter (3mm, 3.5mm, 4mm) | 8Fr (2.7mm) | 300mm | MC-02443 |
| Black | Pediatric & Child/24H | "Y" Endotracheal Tube Adapter (4.5mm, 5mm, 5.5mm) | 10Fr (3.35mm) | 400mm | MC-02444 |
| White | Big Child/24H | "Y" Endotracheal Tube Adapter (5.5mm, 6mm, 6.5mm) | 12Fr (4.05mm) | 400mm | MC-02445 |
We can produce the closed suction catheter according to customers' requirements!!!
-Instructions for Use
*Set up Procedure
1. Inspect the product before use. Do not use it if the package is not intact.
2. Open the sealed package and remove the product.
3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.
4. Connect ventilator tube to the Revolvable Ventilator Connector.
5. Attach the date label to the color ring.
6. Before suctioning commences ensure that the cap of the MDI Port
Irrigation Port is closed.
7.Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/Tracheostomy tube.
*Suctioning Procedure
Caution-always use the recommended vacuum levels./Consider length of suctioning time
1. Grip the three-way adaptor in one hand and use the other hand to feed the suction catheter into the Endotracheal tube/Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.
2. Once the suction catheter is in the desired position /depth, depress the vacuum
control valve to begin suctioning.
3. Remove the suction catheter until the protective sleeve is straight.
4. Repeat steps 1-3 as necessary.
