| Place of Origin: | China |
|---|---|
| Brand Name: | MCreat |
| Certification: | CE, ISO |
| Model Number: | MC-02443 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | Depends on Order Quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100, 000PCS/Month |
| Type Of Sterilization:: | Ethylene Oxide Sterilization | Quality Guarantee Period:: | Five Years |
|---|---|---|---|
| Material: | Medical Grade PVC | OEM: | Printed Logo |
| Certificate: | CE/ISO13485 | Packaging: | Blister |
| High Light: | 2.7mmOD suction catheter size 8,Consumable suction catheter size 8,2.7mmOD closed suction endotracheal tube |
||

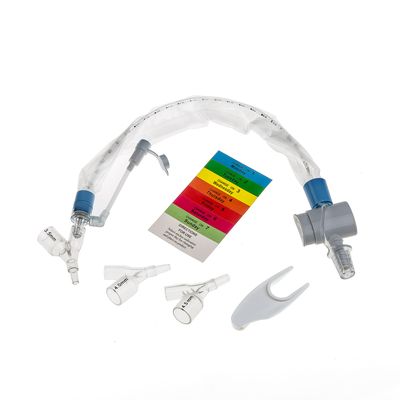

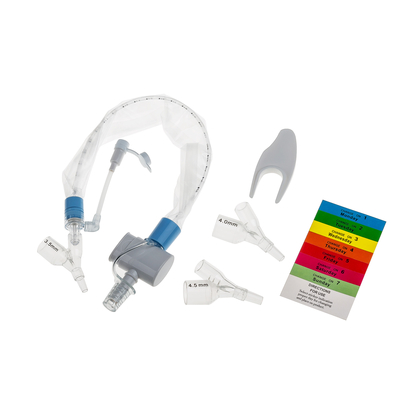

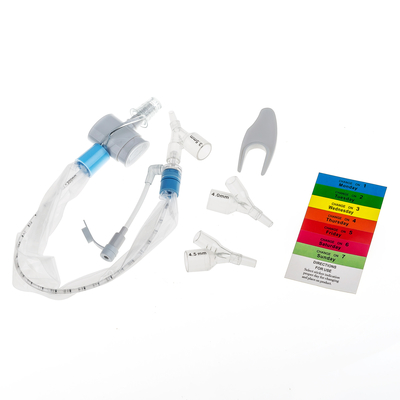

Closed Suction System Child Type 24 Hours with 3 Y Connectors 8Fr 300mm
Feature
- Continuous Breathing
Simultaneously ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Y Connector Type
ET "Y" neonatal and pediatric care adapters are available for 5, 6, 7, 8, French sizes closed suction catheter.
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.
-Irrigation Port with Non-Return Valve
The non-return valve prevents backflow leakage during washing and aerosolized secretion contamination.
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton
-Delivery Time: Within 20 days. It depends on the quantity of order
Product Description
| Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
| Grey | Neonatal/24H | "Y" Endotracheal Tube Adapter (2mm, 2.5mm, 3.0mm) | 5Fr (1.7mm) | 300mm | MC-02440 |
| Light Green | Neonatal/24H | "Y" Endotracheal Tube Adapter (2.5mm,3mm,3.5mm) | 6Fr (1.95mm) | 300mm | MC-02441 |
| Ivory | Pediatric/24H | "Y" Endotracheal Tube Adapter (2.5mm, 3mm, 3.5mm) | 7Fr (2.3mm) | 300mm | MC-02442 |
| Light Blue | Pediatric/24H | "Y" Endotracheal Tube Adapter (3mm, 3.5mm, 4mm) | 8Fr (2.7mm) | 300mm | MC-02443 |
| Black | Pediatric & Child/24H | "Y" Endotracheal Tube Adapter (4.5mm, 5mm, 5.5mm) | 10Fr (3.35mm) | 400mm | MC-02444 |
| White | Big Child/24H | "Y" Endotracheal Tube Adapter (5.5mm, 6mm, 6.5mm) | 12Fr (4.05mm) | 400mm | MC-02445 |
We can produce the closed suction catheter according to customers' requirements!!!
-Instructions for Use
*Suctioning Procedure
Caution-always use the recommended vacuum levels./Consider length of suctioning time
1. Grip the three-way adaptor in one hand and use the other hand to feed the suction catheter into the Endotracheal tube/Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.
2. Once the suction catheter is in the desired position /depth, depress the vacuum
control valve to begin suctioning.
3. Remove the suction catheter until the protective sleeve is straight.
4. Repeat steps 1-3 as necessary.
