| Place of Origin: | China |
|---|---|
| Brand Name: | MCreat |
| Certification: | CE, ISO |
| Model Number: | MC-24SL4 |
| Minimum Order Quantity: | 1000Pcs |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | Depends on Order Quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100, 000PCS/Month |
| Type Of Sterilization:: | Ethylene Oxide Sterilization | Quality Guarantee Period:: | 5 Years |
|---|---|---|---|
| Material: | Medical Grade PVC | OEM: | Printed Logo |
| Packaging: | Blister | Size: | 10Fr |
| Highlight: | Endotracheal Closed System Suction Catheter,600mm Closed System Suction Catheter,10Fr closed circuit suction catheter |
||

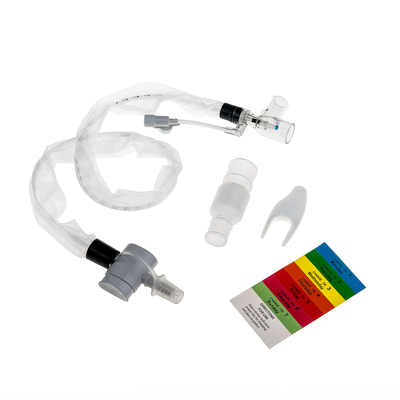

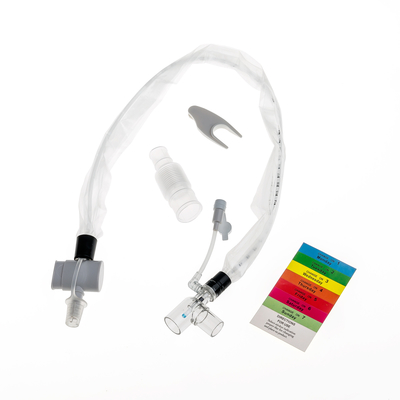

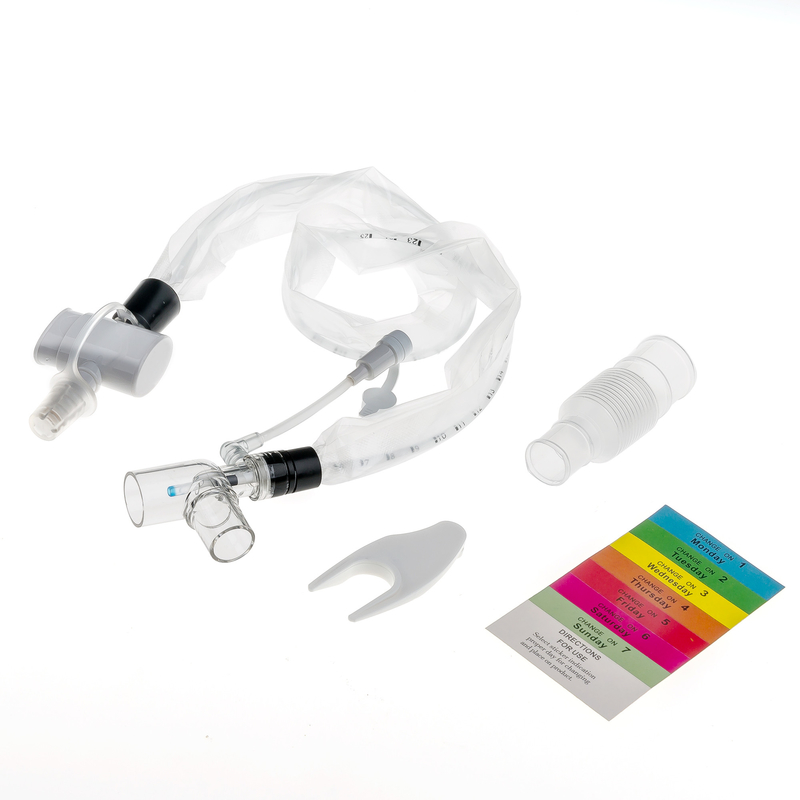

Simple Design Closed Suction Catheter Endotracheal 10Fr 600mm
Features
-The Closed Suction Catheter is a suctioning device to remove secretions from patients receiving mechanical ventilation.
-Soft and smooth blue suction tip. This design reduces damage to mucous membranes.
-Allow the patients' breath - mechanical ventilation and suctioning simultaneously.
-Prevent cross infection. The PU protective sleeve can protect the caregivers from infection.
-Easy operation in suction process by being equipped with a wedge to disconnect and clip functions.
-Available for tracheostomy tubes. The suction catheters match tracheostomy tubes, of which different lengths are available. The catheters are marked with accurate depth to understand the proper catheter insertion in the tracheal.
-Color coded rings provide fast recognition.
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton
-Delivery Time: Within 20 days. It depends on the quantity of order
| MC-24SL0 | AMK Closed Suction Catheter | Simple Neonatal/24H/Tracheostomy | Simple Elbow Connector, Tracheostomy | Grey | 5Fr (1.7mm) | 300mm | |
| MC-24SL1 | AMK Closed Suction Catheter | Simple Neonatal/24H/Tracheostomy | Simple Elbow Connector, Tracheostomy | Light green | 6Fr (1.95mm) | 300mm | |
| MC-24SL2 | AMK Closed Suction Catheter | Simple Pediatric/24H/Tracheostomy | Simple Elbow Connector, Tracheostomy | Ivory | 7Fr (2.3mm) | 300mm | |
| MC-24SL3 | AMK Closed Suction Catheter | Simple Pediatric/24H/Tracheostomy | Simple Elbow Connector, Tracheostomy | Light blue | 8Fr (2.7mm) | 300mm | |
| MC-24SL4 | AMK Closed Suction Catheter | Simple Adult/24H/Tracheostomy | Simple Elbow Connector, Tracheostomy | Black | 10Fr (3.35mm) | 300mm | |
| MC-24SL5 | AMK Closed Suction Catheter | Simple Adult/24H/Tracheostomy | Simple Elbow Connector, Tracheostomy | White | 12Fr (4.05mm) | 300mm | |
| MC-24SL6 | AMK Closed Suction Catheter | Simple Adult/24H/Tracheostomy | Simple Elbow Connector, Tracheostomy | Green | 14Fr (4.75mm) | 300mm | |
| MC-24SL7 | AMK Closed Suction Catheter | Simple Adult/24H/Tracheostomy | Simple Elbow Connector, Tracheostomy | Orange | 16Fr(5.45mm) | 300mm | |
| MC-24SE0 | AMK Closed Suction Catheter | Simple Neonatal/24H/Endotracheal | Simple Elbow Connector, Endotracheal | Grey | 5Fr (1.7mm) | 600mm | |
| MC-24SE1 | AMK Closed Suction Catheter | Simple Neonatal/24H/Endotracheal | Simple Elbow Connector, Endotracheal | Light green | 6Fr (1.95mm) | 600mm | |
| MC-24SE2 | AMK Closed Suction Catheter | Simple Pediatric/24H/Endotracheal | Simple Elbow Connector, Endotracheal | Ivory | 7Fr (2.3mm) | 600mm | |
| MC-24SE3 | AMK Closed Suction Catheter | Simple Pediatric/24H/Endotracheal | Simple Elbow Connector, Endotracheal | Light blue | 8Fr (2.7mm) | 600mm | |
| MC-24SE4 | AMK Closed Suction Catheter | Simple Adult/24H/Endotracheal | Simple Elbow Connector, Endotracheal | Black | 10Fr (3.35mm) | 600mm | |
| MC-24SE5 | AMK Closed Suction Catheter | Simple Adult/24H/Endotracheal | Simple Elbow Connector, Endotracheal | White | 12Fr (4.05mm) | 600mm | |
| MC-24SE6 | AMK Closed Suction Catheter | Simple Adult/24H/Endotracheal | Simple Elbow Connector, Endotracheal | Green | 14Fr (4.75mm) | 600mm | |
| MC-24SE7 | AMK Closed Suction Catheter | Simple Adult/24H/Endotracheal | Simple Elbow Connector, Endotracheal | Orange | 16Fr(5.45mm) | 600mm |
-Instructions for Use
*Set up Procedure
1. Inspect the product before use. Do not use it if the package is not intact.
2. Open the sealed package and remove the product.
3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.
4. Connect ventilator tube to the Revolvable Ventilator Connector.
5. Attach the date label to the color ring.
6. Before suctioning commences ensure that the cap of the MDI Port
Irrigation Port is closed.
7.Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/Tracheostomy tube.
*Suctioning Procedure
Caution-always use the recommended vacuum levels./Consider length of suctioning time
1.Grip the three-way adaptor in one hand and with the other hand feed the suction
a catheter into the Endotracheal tube/Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.
2.Once the suction catheter is in the desired position /depth depress the vacuum
Control valve to apply suction.
3. Remove the suction catheter until the protective sleeve is straight.
4.Repeat steps1-3 as necessary.
