Type Of Sterilization:: | Ethylene Oxide Sterilization | Quality Guarantee Period:: | Five Years |
---|---|---|---|
Logo Printing: | Customized | Material: | Medical Grade PVC |
Classification: | Class II | Packaging: | Blister |
Certificate: | CE/ISO13485 | OEM: | Printed Logo |
Highlight: | 300mm 5Fr medical Closed suction catheter,Class II Tracheostomy medical Closed suction catheter,300mm 5Fr closed suction System |

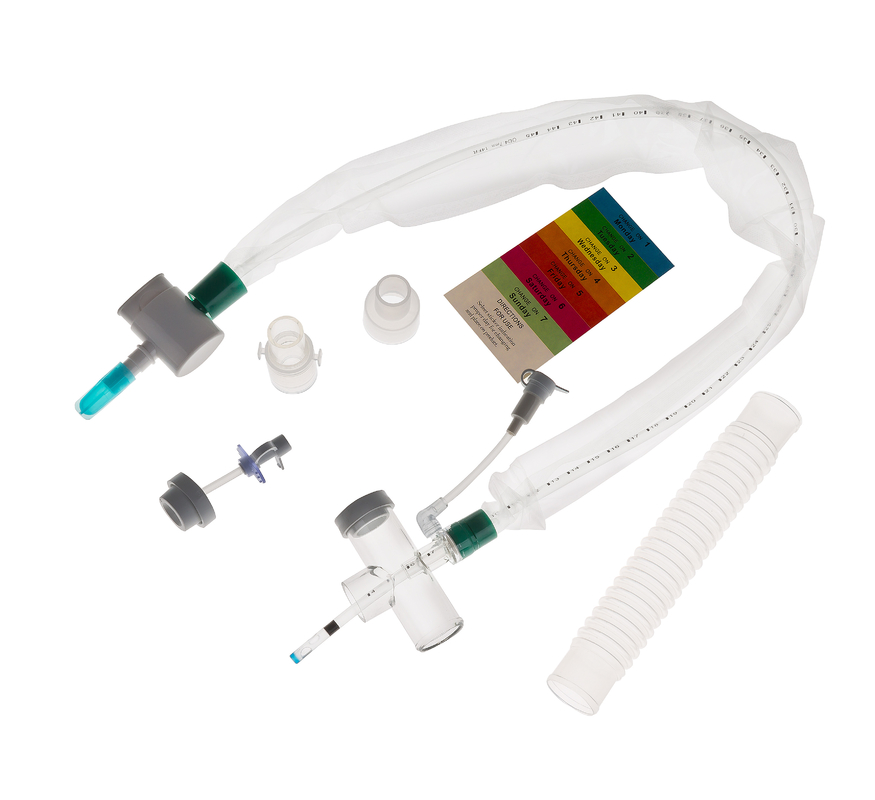

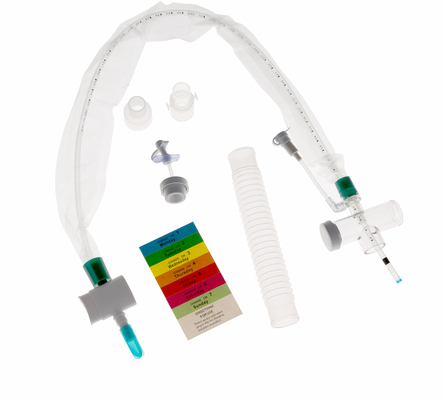

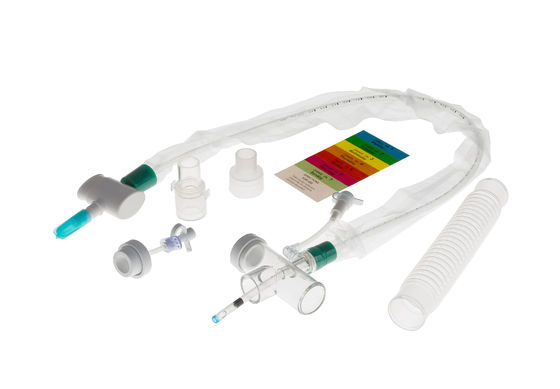

Closed Suction System (T-Piece) 24H Tracheostomy 5Fr For Airway Management
Features
- Continuous Breathing
Simultaneously ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Double Swivel Connector
15mm connector of Double Swivel
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton
-Delivery Time: Within 20 days. It depends on the quantity of order
Product Description
Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
Grey | T-Piece/24H/Tracheostomy | T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube | 5Fr | 300mm | MC-02420 |
Light Green | T-Piece/24H/Tracheostomy | T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube | 6Fr | 300mm | MC-02421 |
Ivory | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 7Fr | 300mm | MC-02422 |
Light Blue | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 8Fr | 300mm | MC-02423 |
Black | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 10Fr | 300mm | MC-02424 |
White | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 12Fr | 300mm | MC-02425 |
Green | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 14Fr | 300mm | MC-02426 |
Orange | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 16Fr | 300mm | MC-02427 |
We can produce the closed suction catheter according to customers' requirements.
Instructions for Use
*Set up Procedure
1. Inspect the product before use. Do not use it if the package is not intact.
2. Open the sealed package and take out the product.
3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.
4. Connect ventilator tube to the Revolvable Ventilator Connector.
5. Attach the date label to the color ring.
6. Before suctioning commences ensure that the cap of the MDI Port/ irrigation Port is closed.
7.Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/ Tracheostomy tube.
*Suctioning Procedure
Caution-always use the recommended vacuum levels./Consider length of suctioning time
1.Grip the three-way adaptor in one hand and with the other hand feed the suction
a catheter into the Endotracheal tube/ Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.
2.Once the suction catheter is in the desired position/ depth depress the vacuum
Control valve to apply suction.
3. Remove the suction catheter until the protective sleeve is straight.
4.Repeat steps1-3 as necessary.
