| Place of Origin: | China |
|---|---|
| Brand Name: | MCreat |
| Certification: | CE,ISO |
| Model Number: | 1.0#-5.0# |
| Minimum Order Quantity: | 1000pcs |
| Price: | negotiable |
| Packaging Details: | Each per paper-plastic pouch size 380*150mm, 10pcs per inner box size 380*140*150mm, 100pcs per carton, size 750*320*390mm |
| Delivery Time: | Depends on Order Quantity |
| Payment Terms: | T/T |
| Material: | PVC | Sterilization Type: | Ethylene Oxide Sterilization |
|---|---|---|---|
| Quality Guarantee Period:: | Four Years | OEM: | Available |
| Bar: | With Or Without Bar | ||
| High Light: | PVC Material LMA Size 3,reinforced LMA Size 3,PVC Material LMA tube anesthesia |
||

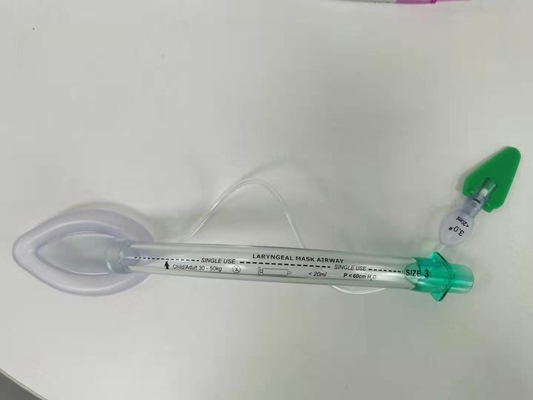

PVC Disposable Laryngeal Mask Airway
Instruction for use
*Operation Procedure
Remove the product from the pouch, and preventing to be polluted.
-After using, deflate the air completely, and then pull out Laryngeal mask airway.
Features
- Flexible PVC tube
Soft thickness and tenacity main tube reduce the risk of crushing

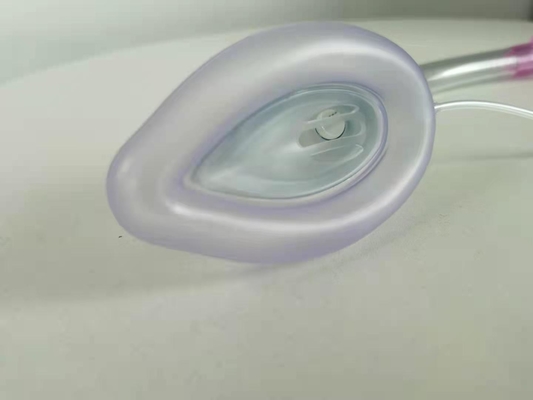

- Liquid Silicone Cuff
Softer cuff is better for patient
The cuff shape is adapted for the contour of the oropharyngeal area
More secure seal
- Economical Laryngeal Mask
Soft Silicon cuff reduces patient trauma
PVC tube combine with silicon cuff is cost effective
- Strength Neck and Smooth surface
Strength neck avoid bending and safer
Smooth liquid silicon surface is better for insertion
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton
-Delivery Time: Within 20 days. It depends on quantity of order
Product Description

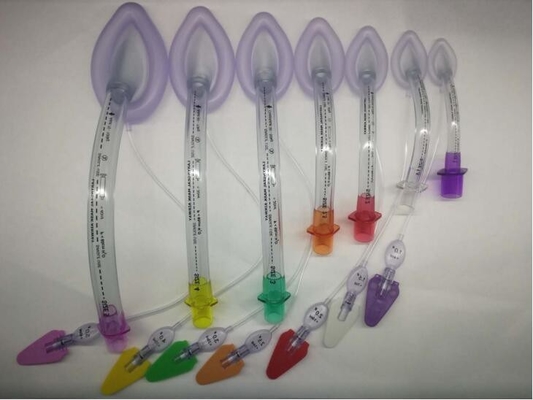

Disposable PVC & Silicone Curved Laryngeal Mask Airway Standard Form
| 010-9910 | <5kgs | #1.0 |
| 010-9915 | 5kgs-10kgs | #1.5 |
| 010-9920 | 10kgs-20kgs | #2.0 |
| 010-9925 | 20kgs-30kgs | #2.5 |
| 010-9930 | 30kgs-50kgs | #3.0 |
| 010-9940 | 50kgs-70kgs | #4.0 |
| 010-9950 | 70kgs-100kgs | #5.0 |
Instruction for use
*Operation Procedure
-Remove the product from the pouch, and preventing to be polluted.
-Use a syringe with Ruhr tapered-end joint to deflate the cuff completely of the Laryngeal mask airway, then apply a small amount of water-soluble lubricants (or saline) to the cuff, and grip the laryngeal mask airway with a pen-style hand.
-Make the patient's mouth opening, and place the back tip behind the front teeth assisted with the index finger along the jaw slowly, and pressed until feeling the resistance. Before removing the index finger, with your other hand pressing the endotracheal tube to prevent displacement.
-Use a syringe to open the valve, and inflate the cuff to the indicating pressure (no more than the max capacity). Put into dental pad, fixed position, and maintain ventilation.
-After using, deflate the cuff completely, and then pull out Laryngeal mask airway.
