- Push Switch & Luer Lock
Isolated and vaccum-sealed turbulent
cleaning chamberReduces risk of VAP for ventilated patients
- Continuous Breathing
Simultaneously ventilation
- Soft Blue Suction Tip
This design reduces damage to patient while suctioning
After returning catheter, the tip of tube is easier for irrigational cleaning
- Doule Swivel Connector
15mm connector of Double Swivel
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping fuctions
- For Endotraheal tube and Tracheostomy tube
Designd for Tracheostomy tube using
Diffetren length of tube available
- Prevent Cross Infection
Designed with protective sleeve to isolate the bacteria inside and avoids cross inflection to caregivers
-Delivery Time: Within 20 days. It depends on quantity of order

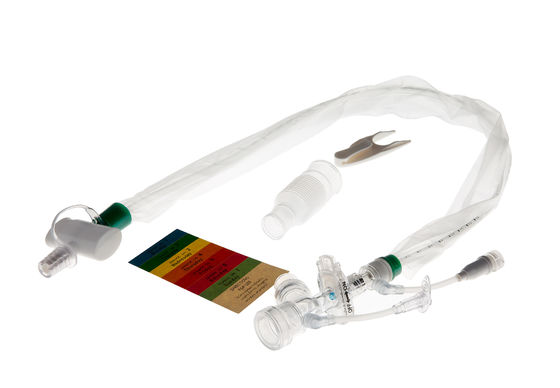

Product Description Closed suction catheter standard form
We can produce Close suction catheter according to customer's requirement!!!
Instructions for use
*Set up procedure
1. Inspect the product before use. Do not use package is not intact.
2. Open the sealed package and remove the product.
3. Connect the endotracheal tube/ tracheostomy tube to the revolvable adapter.
4. Connect ventilator tube to the revolvable ventilator connector.
5. Attach the date label to colour ring.
6. Before suctioning commences ensure that the cap of the MDI port/ irrigation port is closed.
7. Before suctioning: please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the endotracheal tube/ tracheostomy tube.
*Suctioning Procedure
Caution--- Always use the recommended vacuum levels/ Consider length of suctioning time
1. Grip the three way adaptor in one hand and with the other hand feed the suction catheter into the endotracheal tube/ tracheostomy tube to the required depth.
Depth markers can be visible through the protective cover for your guidance.
2. Once the suction catheter is in the desired position/ depth, depress the vacuum control valve to apply suction.
3. Remove suction catheter until the protective sleeve is straight.
4. Repeat steps1-3 as necessary.
