| Place of Origin: | China |
|---|---|
| Brand Name: | MCR |
| Certification: | FDA/ISO/CE |
| Model Number: | MC-02420 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 2.7-3.5/PC |
| Packaging Details: | Ponch,Box,Carton |
| Delivery Time: | 30-45 days |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 480, 000PCS/Year |
| Instrument Classification Type: | Class II | Certificates: | ISO13485/ FDA |
|---|---|---|---|
| Length: | 30 Cm | Logo Printing: | Customized |
| Material: | Polyurethane Sleeve | Quality Guarantee Period: | Five Years |
| Sterility: | Sterile | Type Of Sterilization: | Ethylene Oxide Sterilization |
| Usage: | Single Use | Size: | 10Fr,12 Fr,14Fr,16Fr |
| High Light: | T-Piece Closed Suction Catheter,Endotracheal Tubes Closed Suction System,Closed Suction System With Suction Tip |
||

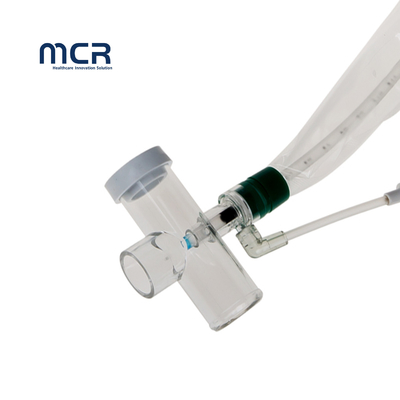

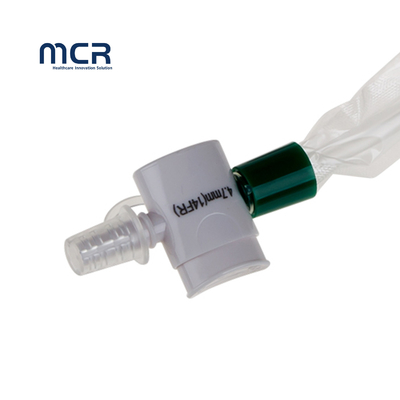

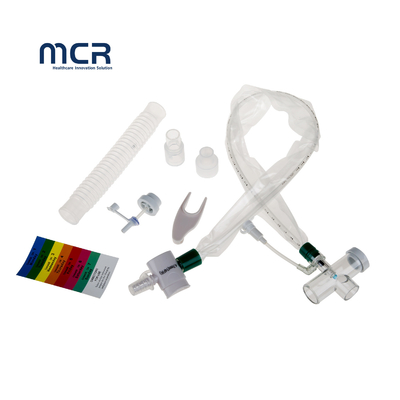

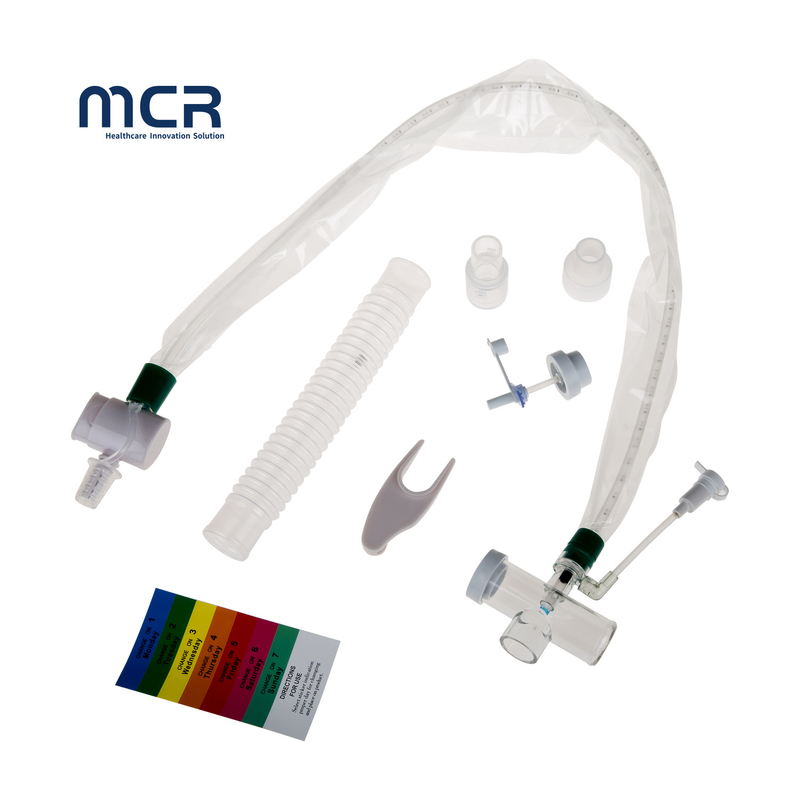

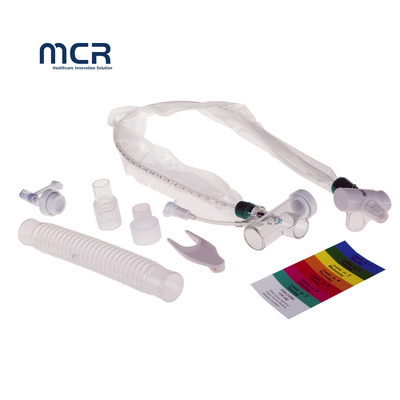

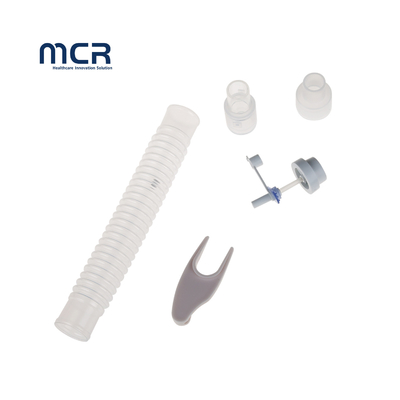

T-Piece Closed Suction Catheter/System for Endotracheal and Tracheostomy Tubes with Soft Blue Suction Tip
- It is designed with a protective sleeve to isolate the germs inside and help caregivers avoid cross-infection.
-Simultaneous ventilation design will allow the patients' comfort of suctioning without stopping the air ventilation.
-Automatic Flushing Closed Suction System is the only catheter that retracts within a unique and isolated turbulent cleaning chamber. The turbulent cleansing action results in an 89% cleaner catheter tip compared to a standard closed suction system. This reduced colonization may help reduce the risk of VAE and VAP in your ventilated patients.
-A turbulent cleaning chamber creates cleansing action, resulting in a cleaner catheter.
-Hinged valve isolates catheter tip and helps prevent inadvertent lavage.
-Integrated MDI port
Feature
- Continuous Breathing
Simultaneous ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tube with different lengths are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.
Product Data Sheet
| Product Code | Size | Colour Code | Tube OD (mm) | Length of Tube (mm) |
| MC-02430 | Neonatal/24H/Endotracheal | Grey | 5Fr(1.7mm) | 300mm |
| MC-02431 | Neonatal//24H/Endotracheal | Light Green | 6Fr(1.95mm) | 300mm |
| MC-02432 | Pediatric/24H/Endotracheal | Lvory | 7Fr(2.3mm) | 300mm |
| MC-02433 | Pediatric//24H/Endotracheal | Light Blue | 8Fr(2.7mm) | 300mm |
| MC-02434 | Adult/24H/Endotracheal | Black | 10Fr(3.35mm) | 600mm |
| MC-02435 | Adult/24H/Endotracheal | White | 12Fr(4.05mm) | 600mm |
| MC-02436 | Adult/24H/Endotracheal | Green | 14Fr(4.75mm) | 600mm |
| MC-02437 | Adult/24H/Endotracheal | Orange | 16Fr(5.45mm) | 600mm |
| Product Code | Size | Colour Code | Tube OD (mm) | Length of Tube (mm) |
| MC-02420 | Neonatal/24H/Tracheostomy | Grey | 5Fr(1.7mm) | 300mm |
| MC-02421 | Neonatal//24H/Tracheostomy | Light Green | 6Fr(1.95mm) | 300mm |
| MC-02422 | Pediatric/24H/Tracheostomy | Lvory | 7Fr(2.3mm) | 300mm |
| MC-02423 | Pediatric//24H/Tracheostomy | Light Blue | 8Fr(2.7mm) | 300mm |
| MC-02424 | Adult/24H/Tracheostomy | Black | 10Fr(3.35mm) | 300mm |
| MC-02425 | Adult/24H/Tracheostomy | White | 12Fr(4.05mm) | 300mm |
| MC-02426 | Adult/24H/Tracheostomy | Green | 14Fr(4.75mm) | 300mm |
| MC-02427 | Adult/24H/Tracheostomy | Orange | 16Fr(5.45mm) | 300mm |
Company profile
MCR Medical Headquarters is located in Hua Chuang Industrial Park, Guangzhou, China. Founded in 2018, MCR Medical have been devoted to providing medical disposable products around the world, focusing on Anaesthesia, Respiratory,Gastroenterology and home care products. Our products have been sold to North America, Europe, South America, Asia, Middle East and so on.
Now MCR have obtained GMP, ISO 13485 certification, and variety of medical products have received the CE certificate, and registered in FDA in the United States.
MCR Medical is also committed to bring innovative products and health solutions for the medical field. We have an elite R&D Team with strong strength in research and development, management services to serve medical marketing and customers needs.
MCR Medical has a 2,400 square meters of 100,000 level purification workshop onsite.To provide superior medical products to medical field, MCR Medical is equipped with advanced production line and inspection facilities.
Consistency and quality is our mission. From Raw material incoming control to production line inspection, MCR Medical strictly regulates each step of production process ensures the excellent quality of each product. MCR Medical is also equipped with physical and chemical lab that meet CFDA standard to provide higher quality products.
In recent years, we have been striving to become a medical production and sales enterprise with innovative research and development and Superior quality in the medical industry. We pay attention to the quality high performance and quality control of the whole process, so as to ensure that we can provide quality products for customers.
MCR Medical has been a significant medical catheter supplier in the world. MCR annual output value and sales are increasing year by year. Focusing on the future, we are expanding rapidly into new products for the world’s healthcare market.
To strive for a happier & healthier tomorrow. Implement our philosophy ‘Do something for health’.
