Disposable Medical Supplies Double Lumen Endotracheal Tube with PU Micro-Thin Cuff

Basic Information
Place of Origin: China
Brand Name: MCR / OEM
Certification: CE, ISO, FDA
Model Number: MC-09PL28
Minimum Order Quantity: 1 Pieces
Price: 6.0-8.5
Packaging Details: Pouch, Box, Carton
Delivery Time: 5-45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100,000-150,000PCS/Month
Detail Information
Name: Double Lumen Endobronchial Tube Material: Medical Grade PVC, PU
Size: 28/32/35/37/39/41Fr Code: MC-09PL28--MC-09PR41
Brand: MCR/OEM Type: Disposable
Usage: Single-use Instrument Classification: Class II
High Light:

PU Micro-Thin Cuff Endotracheal Tube

,

Disposable Endotracheal Tube

,

Disposable Double Lumen Endotracheal Tube


Product Description

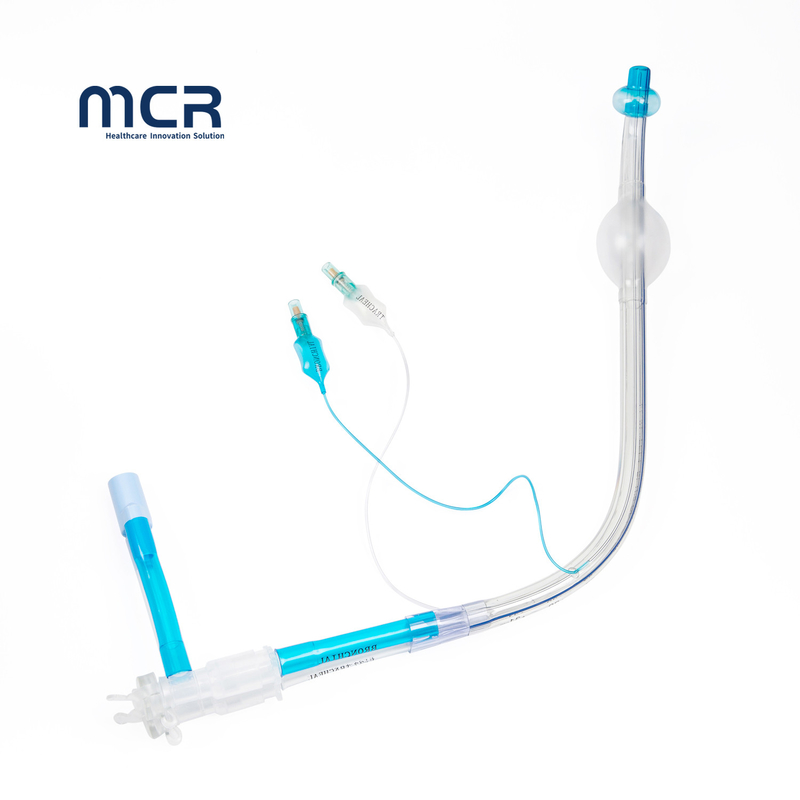

Disposable Medical Supplies Double Lumen Endotracheal Tube with PU Micro-Thin Cuff



Features

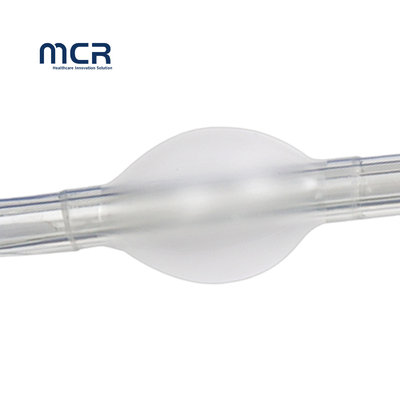

- Upgraded PU Micro-thin Balloon


- Softer and simple design. Softer and straighter tube with simple connector design


- Smooth Tip. The tube tip is heating smooth with high quality material

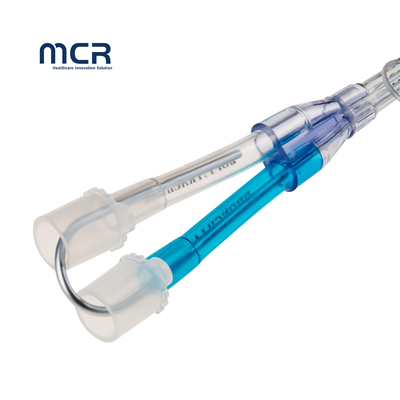

- Components in one pack, "Y" connector, suction tube, stylet and so on





Disposable Medical Supplies Double Lumen Endotracheal Tube with PU Micro-Thin Cuff



Instructions for use

1. Select the appropriate type of disposable endotracheal tube and ensure that the package is intact and the sterilization of product is within the validity period. Open the seal and take out the disposable endotracheal tube- only the professional doctor can operate according to the sterile procedure;

2.Test the cuff before inserting the disposable endotracheal tube: use the syringe to inject the gas and then leak the gas. Use the expansion rod to expand or shorten forwardly and backwardly so as to form an adjustable angle in the front of the disposable endotracheal tube;

3. Insert the disposable endotracheal tube according to the normal operation method, remove the expansion rod after inserting and finish the establishment of the airway;

4. After inserting the disposable endotracheal tube, determine the tip position of the disposable endotracheal tube through the X-ray visualization line; use the inflator cone to press the one-way valve and inject the gas into the cuff. The disposable endotracheal tube should be in safe position and avoid movement;

5. Connect the mechanical end of the suction lumen to the suction equipment, adjust the pressure and attract the phlegm. (The suction time should not be longer than 15s/time, and the suction action should be gentle. The negative pressure should not exceed -6.65 kPa. The suction lumen should be washed by using 5-15 ml normal saline after the suction of phlegm. For patient who needs to keep the disposable endotracheal tube for a long time, the disposable endotracheal tube should be well inserted properly into the right depth and position and avoid the disposable endotracheal tube being sliding out or inserting too deep.)

6. Ensure that the cuff of the disposable endotracheal tube can be injected gas smoothly and the normal ventilation is not blocked. Keep the airway smooth and unblocked, suck the phlegm regularly and ensure the humidification.

7. When it is time to take the disposable endotracheal tube out, first use the inflator cone to press the one-way valve and leak the gas from the cuff and take the disposable endotracheal tube out. If the gas in the cuff is too little to suck out, use the sharp instruments to pierce the cuff, and then remove the disposable endotracheal tube.



Disposable Medical Supplies Double Lumen Endotracheal Tube with PU Micro-Thin Cuff



Date Sheet



Size ID (Fr) Left Right
28 MC-09PL28 MC-09PR28
32 MC-09PL32 MC-09PR32
35 MC-09PL35 MC-09PR35
37 MC-09PL37 MC-09PR37
39 MC-09PL39 MC-09PR39
41 MC-09PL41 MC-09PR41









Disposable Medical Supplies Double Lumen Endotracheal Tube with PU Micro-Thin Cuff 0Disposable Medical Supplies Double Lumen Endotracheal Tube with PU Micro-Thin Cuff 1
