| Place of Origin: | China |
|---|---|
| Brand Name: | MCREAT/OEM |
| Certification: | FDA/ISO/CE/FSC |
| Model Number: | MC-02400-MC-02417 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 2.7-3.5/PC |
| Packaging Details: | Ponch,Box,Carton |
| Delivery Time: | 30-45 days |
| Payment Terms: | L/C, Western Union, , T/T |
| Supply Ability: | 480, 000PCS/Year |
| Name: | Closed Suction Catheter | Length: | 30 Cm/60cm |
|---|---|---|---|
| Type: | Single Lumen | Size: | 5Fr,6Fr,7Fr,8FR,10Fr,12 Fr,14Fr,16Fr |
| Material: | Polyurethane Sleeve | Quality Guarantee Period: | Five Years |
| Type Of Sterilization: | Ethylene Oxide Sterilization | ||
| High Light: | PU Protective Sleeve Suction Catheter,60cm Closed Suction Catheter,Soft Closed Suction Catheter |
||

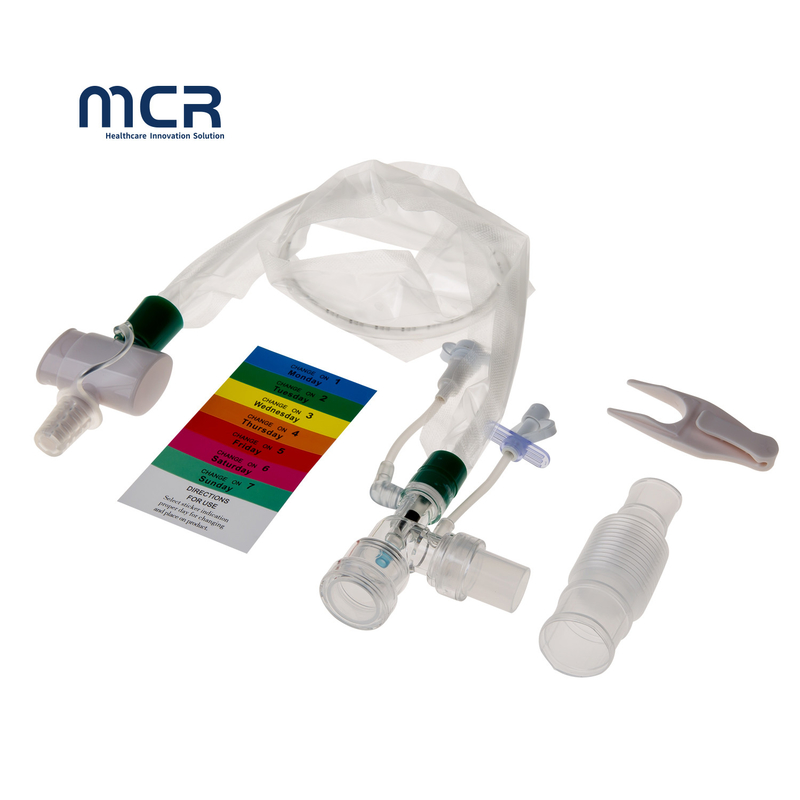

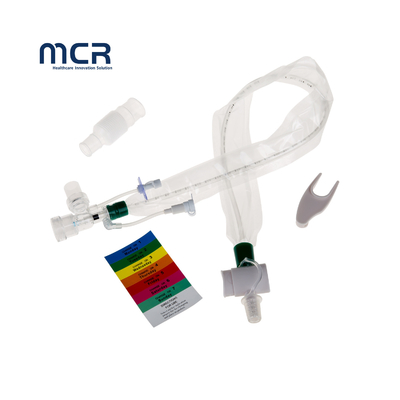

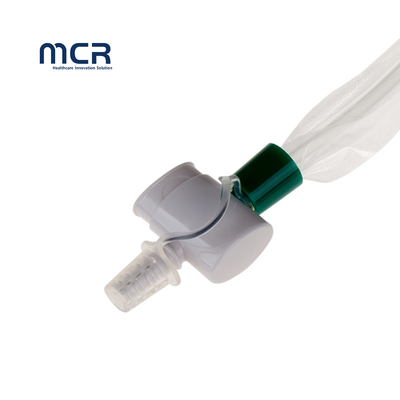

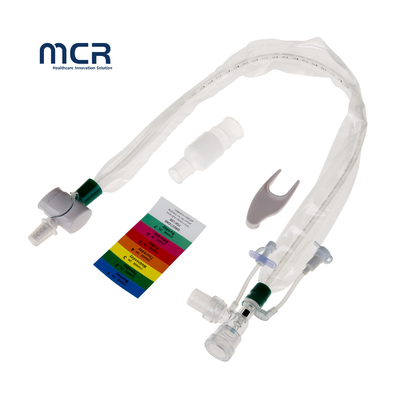

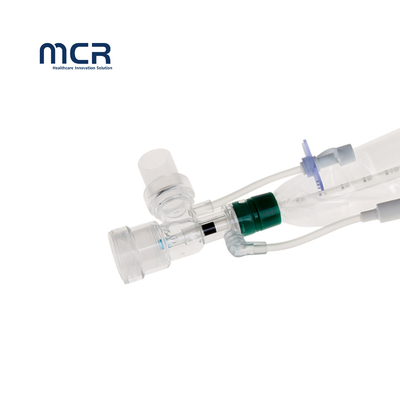

Soft Closed Suction Catheter With PU Protective Sleeve
Closed suction catheter is designed with a protective sleeve to isolate the germs inside and help caregivers avoid cross-infection.Simultaneous ventilation design will allow the patients' comfort of suctioning without stopping the air ventilation.
| Product Code | Size | Colour Code | Tube OD (mm) | Length of Tube (mm) |
| MC-02400 | Neonatal/24H/Tracheostomy | Grey | 5Fr(1.7mm) | 300mm |
| MC-02401 | Neonatal//24H/Tracheostomy | Light Green | 6Fr(1.95mm) | 300mm |
| MC-02402 | Pediatric/24H/Tracheostomy | Lvory | 7Fr(2.3mm) | 300mm |
| MC-02403 | Pediatric//24H/Tracheostomy | Light Blue | 8Fr(2.7mm) | 300mm |
| MC-02404 | Adult/24H/Tracheostomy | Black | 10Fr(3.35mm) | 300mm |
| MC-02405 | Adult/24H/Tracheostomy | White | 12Fr(4.05mm) | 300mm |
| MC-02406 | Adult/24H/Tracheostomy | Green | 14Fr(4.75mm) | 300mm |
| MC-02407 | Adult/24H/Tracheostomy | Orange | 16Fr(5.45mm) | 300mm |
| Product Code | Size | Colour Code | Tube OD (mm) | Length of Tube (mm) |
| MC-02410 | Neonatal/24H/Endotracheal | Grey | 5Fr(1.7mm) | 300mm |
| MC-02411 | Neonatal//24H/Endotracheal | Light Green | 6Fr(1.95mm) | 300mm |
| MC-02412 | Pediatric/24H/Endotracheal | Lvory | 7Fr(2.3mm) | 300mm |
| MC-02413 | Pediatric//24H/Endotracheal | Light Blue | 8Fr(2.7mm) | 300mm |
| MC-02414 | Adult/24H/Endotracheal | Black | 10Fr(3.35mm) | 600mm |
| MC-02415 | Adult/24H/Endotracheal | White | 12Fr(4.05mm) | 600mm |
| MC-02416 | Adult/24H/Endotracheal | Green | 14Fr(4.75mm) | 600mm |
| MC-02417 | Adult/24H/Endotracheal | Orange | 16Fr(5.45mm) | 600mm |
Soft Closed Suction Catheter With PU Protective Sleeve
Set up Procedure
1. Inspect the product before use. Do not use it if the package is not intact.
2. Open the sealed package and remove the product.
3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.
4. Connect ventilator tube to the Revolvable Ventilator Connector.
5. Attach the date label to the color ring.
6. Before suctioning commences, ensure that the cap of the MDI Port and Irrigation Port is closed.
7. Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/Tracheostomy tube.
