| Brand Name: | MCreat |
| Model Number: | #28-#41 |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets/Month |
Video Nasopharyngoscope

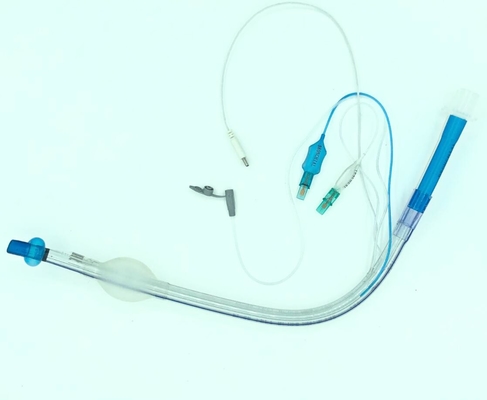

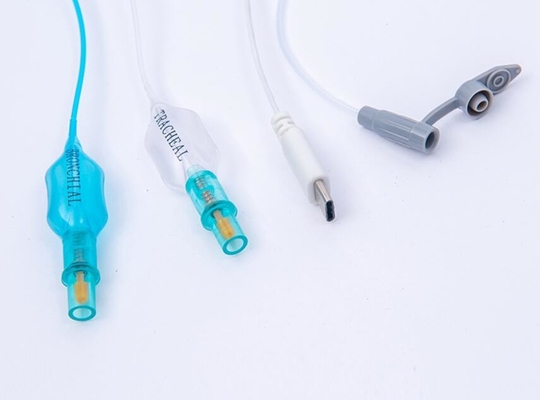

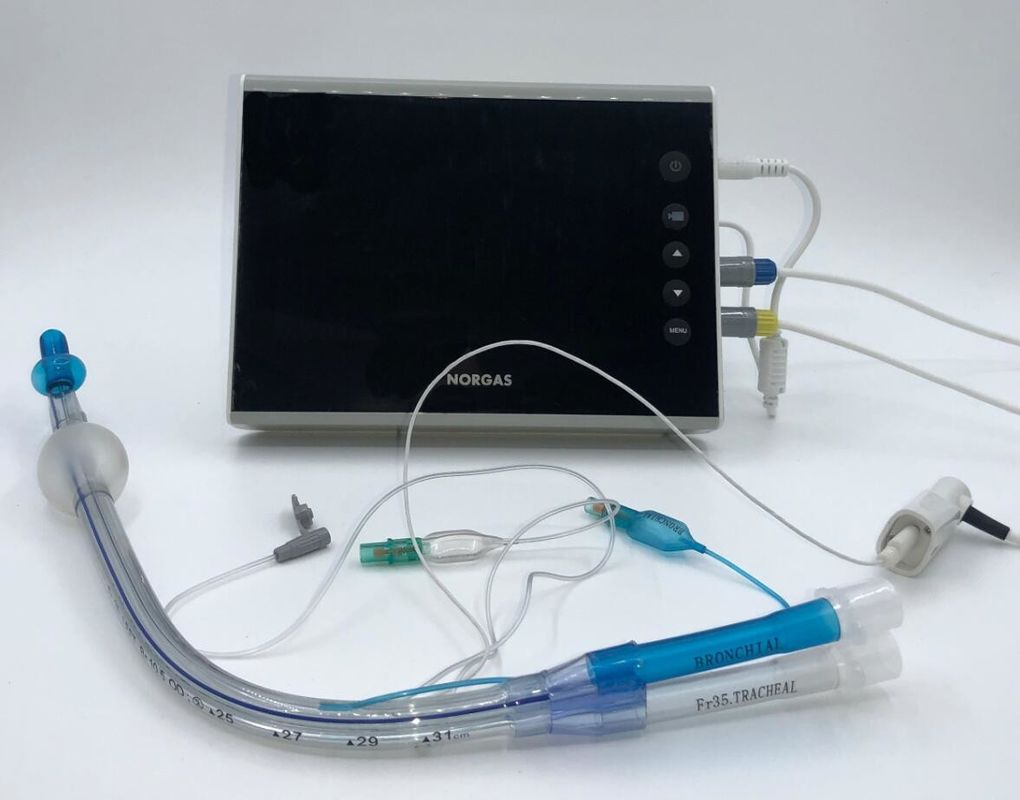

Camera Double Lumen Endobronchial Tube with Double Cuffs for Difficult Airway Intubation
Specification:
Memory card: TF card 2 G (provided) , Max 16G (option)
Memory volume: JPEG : 60KB; 4 hours' video recording: 1G
USB2.0: for transfer data to PC
Articulation: UP 180 degree,Down 130 degree
illumination adjustable: >10000 Lux of illumination with Fiber
Insertion tube covering: polyurethane (match medical standard)
Working length: 300-600mm
Waterproof: IP67 (cable and holder)
Working Temperature: 5~40°C
Atmosphere Pressure: 700hpa~1060hpa
Package: 50*45*35 cm
Outer diameter(forward view):
Video bronchoscopeφ5.8mm with working channel:2.2mmm
Video bronchoscope φ4.8mm with working channel:1.5mmm
Video nasopharyngoscopeφ3.8mm with working channel:0.6mmm
Video nasopharyngoscope φ2.8mm without working channel
Camera
Pixel count: 300000 pixels (1/10" color CMOS)
Analysis: 10.5 lp/mm (at 7mm)
Optic system
field of view(FOV): 90° ± 10°
depth of field(DOF): 3mm~50mm
view direction: forward
Monitor: 3.5"TFT LCD, high resolution
Controls: brightness adjusting, internal image processing;snapshot;video recording
Specification of ENT video endoscope:
| Memory card | TF card 2 G |
| Memory volume | JPEG |
| Working length | 300-600mm |
| Waterproof | IP67 |
| Working Temperature | 5~40°C |
| Atmosphere Pressure | 700hpa~1060hpa |
| charging time | 8~10 H |
