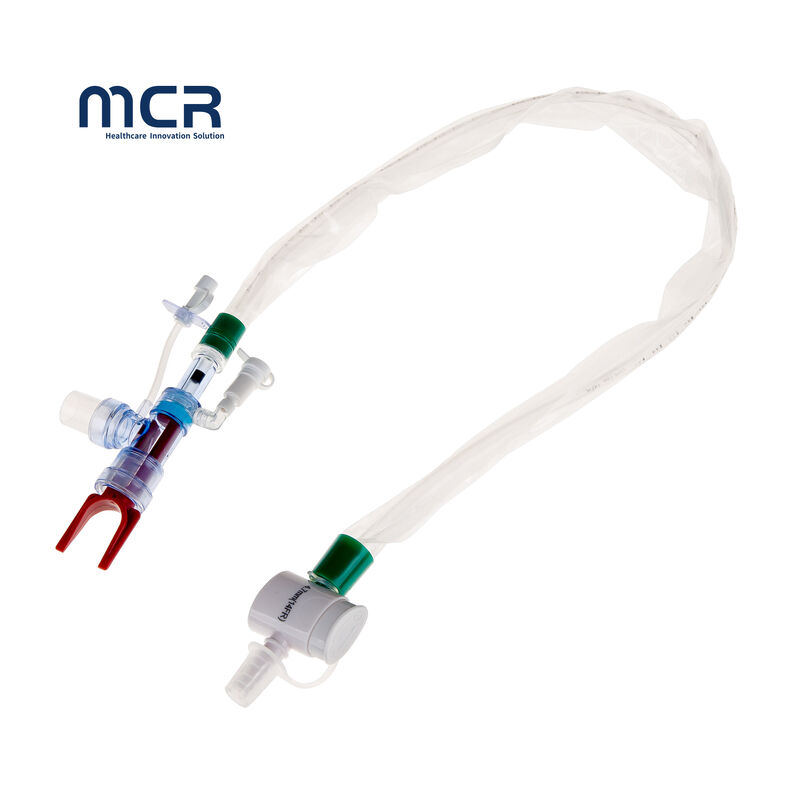

ISO13485 600mm PVC Medical Device Closed Suction Tube Closed Suction System 16FR

Basic Information
Place of Origin: China
Brand Name: MCreat
Certification: CE, ISO
Model Number: MC-07213
Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: Depends on Order Quantity
Payment Terms: L/C, T/T
Supply Ability: 100, 000PCS/Month
Detail Information
Type Of Sterilization:: Ethylene Oxide Sterilization Quality Guarantee Period:: Five Years
Material: Medical Grade PVC Certificate: CE/ISO13485
OEM: Printed Logo Packaging: Blister
Instrument Classification: Class II Size: 16Fr
High Light:

ISO13485 closed suction tube

,

600mm 16Fr closed suction tube

,

600mm 16Fr closed suction circuit


Product Description

Closed Suction Catheter (L-Piece) 72hours for Adult, Automatic Flushing 16Fr Endotracheal



Display video



https://youtu.be/XIGHWxWpacs





Features

Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.

- It is designed with a protective sleeve to isolate the germs inside and help caregivers avoid cross-infection.

-Simultaneous ventilation design will allow the patients' comfort of suctioning without stopping the air ventilation.

-Automatic Flushing Closed Suction System is the only catheter that retracts within a unique and isolated turbulent cleaning chamber. The turbulent cleansing action results in an 89% cleaner catheter tip compared with a standard closed suction system. This reduced colonization may help reduce the risk of VAE and VAP in your ventilated patients.

-A turbulent cleaning chamber creates cleansing action, resulting in a cleaner catheter.

-Hinged valve isolates catheter tip and helps prevent inadvertent lavage.

-Integrated MDI port (optional)



Packaging & Delivery

-Packaging Details

-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton

-Delivery Time: Within 20 days. It depends on the quantity of order



Product Description

Closed Suction Catheter Standard Form
Clour Size Products' Specification & Description Tube OD Length of Tube Product Code
Black Adult/72H/Endotracheal Double Swivel Elbow Endotracheal, Flex Tube 10Fr (3.35mm) 600mm MC-07210
White Adult/72H/Endotracheal Double Swivel Elbow Endotracheal, Flex Tube 12Fr (4.05mm) 600mm MC-07211
Green Adult/72H/Endotracheal Double Swivel Elbow Endotracheal, Flex Tube 14Fr (4.75mm) 600mm MC-07212
Orange Adult/72H/Endotracheal Double Swivel Elbow Endotracheal, Flex Tube 16Fr (5.45mm) 600mm MC-07213
Black Adult/72H/Tracheostomy Double Swivel Elbow Tracheostomy, Flex Tube 10Fr (3.35mm) 300mm MC-07200
White Adult/72H/Tracheostomy Double Swivel Elbow Tracheostomy, Flex Tube 12Fr (4.05mm) 300mm MC-07201
Green Adult/72H/Tracheostomy Double Swivel Elbow Tracheostomy, Flex Tube 14Fr (4.75mm) 300mm MC-07202
Orange Adult/72H/Tracheostomy Double Swivel Elbow Tracheostomy, Flex Tube 16Fr (5.45mm) 300mm MC-07203


We can produce the closed suction catheter according to customers' requirements.



ISO13485 600mm  PVC Medical Device Closed Suction Tube Closed Suction System 16FR 0



Instructions for Use
Video:

https://youtu.be/XIGHWxWpacs

1. Inspect the product before use. Do not use it if the package is not intact.



2. Open the sealed package and take out the product.

3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.

4. Connect ventilator tube to the Revolvable Ventilator Connector.

5. Attach the date label to the color ring.

6. Before suctioning commences ensure that the cap of the MDI Port/ irrigation Port is closed.

7.Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/ Tracheostomy tube.

*Suctioning Procedure

Caution-always use the recommended vacuum levels./Consider length of suctioning time

1.Grip the three-way adaptor in one hand and with the other hand feed the suction
a catheter into the Endotracheal tube/ Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.

2.Once the suction catheter is in the desired position/ depth depress the vacuum
Control valve to apply suction.

3. Remove the suction catheter until the protective sleeve is straight.

4.Repeat steps1-3 as necessary.
