Disposable Closed Suction Catheter Single Lumen 72H Double Swivel Elbow & Push Switch

Basic Information
Place of Origin: China
Brand Name: MCR / OEM
Certification: CE, ISO, FDA
Model Number: MC-07240
Minimum Order Quantity: 1 Pieces
Price: 2.2-4.5usd/pc
Packaging Details: Pouch, Box, Carton
Delivery Time: 5-45 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50,000-100,000PCS/Month
Detail Information
Type Of Sterilization: Ethylene Oxide Sterilization Certificate: CE/ISO13485/FDA
HS Code: 9018390000 Length: 300-600mm
Application: Endotracheal And Tracheostomy Samples: Available
High Light:

Push Switch Disposable Closed Suction Catheter

,

Double Swivel Elbow Closed Suction Catheter

,

Single Lumen Disposable Closed Suction Catheter


Product Description

Disposable Closed Suction Catheter Single Lumen 72H Double Swivel Elbow & Push Switch



-Simultaneous ventilation design will allow the patients' comfort of suctioning without stopping the air ventilation.

-Push switch and Luer lock. This design can keep breathing and isolate the turbulent cleaning chamber and prevent spray back, which reduces the risk of VAP (ventilator-associated pneumonia) for ventilated patients.



Disposable Closed Suction Catheter Single Lumen 72H Double Swivel Elbow & Push Switch



Suctioning Procedure

Caution-always use the recommended vacuum levels./Consider length of suctioning time

1. Grip the three-way adaptor in one hand and use the other hand to feed the suction catheter into the Endotracheal tube/Tracheostomy tube to the required depth.
Depth markers can be visible through the protective cover for your guidance.

2. Once the suction catheter is in the desired position /depth depress the vacuum control valve to begin suctioning.

3. Remove the suction catheter until the protective sleeve is straight.

4. Repeat steps1-3 as necessary.



Disposable Closed Suction Catheter Single Lumen 72H Double Swivel Elbow & Push Switch



Product Data Sheet



Product Code Size Colour Code Tube OD (mm) Length of Tube (mm)
MC-07250 Adult/72H/Endotracheal Black 10Fr(3.35mm) 600mm
MC-07251 Adult/72H/Endotracheal White 12Fr(4.05mm) 600mm
MC-07252 Adult/72H/Endotracheal Green 14Fr(4.75mm) 600mm
MC-07253 Adult/72H/Endotracheal Orange 16Fr(5.45mm) 600mm

MC-07240 Adult/72H/Tracheostomy Black 10Fr(3.35mm) 300mm
MC-07241 Adult/72H/Tracheostomy White 12Fr(4.05mm) 300mm
MC-07242 Adult/72H/Tracheostomy Green 14Fr(4.75mm) 300mm
MC-07243 Adult/72H/Tracheostomy Orange 16Fr(5.45mm) 300mm

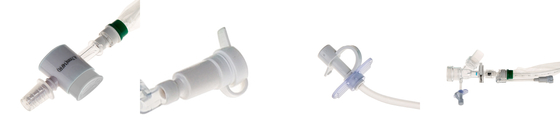

Disposable Closed Suction Catheter Single Lumen 72H Double Swivel Elbow & Push Switch 0Disposable Closed Suction Catheter Single Lumen 72H Double Swivel Elbow & Push Switch 1

Disposable Closed Suction Catheter Single Lumen 72H Double Swivel Elbow & Push Switch 2
