Luer Lock Type Closed System Suction Cathete

Basic Information
Place of Origin: China
Brand Name: MCreat
Certification: CE, ISO
Model Number: MC-07210
Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: Depends on Order Quantity
Payment Terms: L/C, T/T
Supply Ability: 100, 000PCS/Month
Detail Information
Type Of Sterilization:: Ethylene Oxide Sterilization Quality Guarantee Period:: Five Years
Material: Medical Grade PVC Certificate: CE/ISO13485
OEM: Printed Logo Packaging: Blister
High Light:

Luer Lock Type Closed System Suction Catheter

,

ISO13485 Closed System Suction Catheter

,

Luer Lock Type tracheostomy suction catheter


Product Description

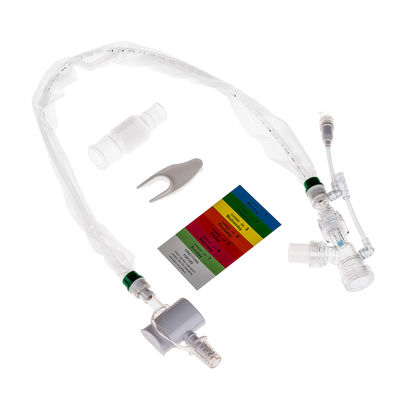

Closed Suction Catheter(Y-Piece) 72Hours for Adult, Push Switch & Luer Lock type



Features

- Continuous Breathing
Simultaneous ventilation

- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.

- Double Swivel Connector
15mm connector of Double Swivel

- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions

- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available

- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-infection.



Packaging & Delivery

-Packaging Details

-Packing: 1pc/sterilized pouch, 10pcs/inner box, Outer packing: 100pcs/shipping carton

-Delivery Time: Within 20 days. It depends on the quantity of order.



Product Description

-Closed Suction Catheter Standard Form
Clour Size Products' Specification & Description Tube OD Length of Tube Product Code
Black Adult/72H/Endotracheal Push Switch & Luer Lock Type Tracheostomy, Flex Tube 10Fr (3.35mm) 600mm MC-07250
White Adult/72H/Endotracheal Push Switch & Luer Lock Type Tracheostomy, Flex Tube 12Fr (4.05mm) 600mm MC-07251
Green Adult/72H/Endotracheal Push Switch & Luer Lock Type Tracheostomy, Flex Tube 14Fr (4.75mm) 600mm MC-07252
Orange Adult/72H/Endotracheal Push Switch & Luer Lock Type Tracheostomy, Flex Tube 16Fr (5.45mm) 600mm MC-07253


We can produce the closed suction catheter according to customers' requirements!!!


-Instructions for Use

*Set up Procedure
1. Inspect the product before use. Do not use it if the package is not intact.

2. Open the sealed package and remove the product.

3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.

4. Connect ventilator tube to the Revolvable Ventilator Connector.

5. Attach the date label to the color ring.

6. Before suctioning commences, ensure that the cap of the MDI Port and Irrigation Port is closed.

7. Before suctioning: please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/Tracheostomy tube.


*Suctioning Procedure

Caution-always use the recommended vacuum levels./Consider length of suctioning time

1. Grip the three-way adaptor in one hand and use the other hand to feed the suction catheter into the Endotracheal tube/Tracheostomy tube to the required depth.
Depth markers can be visible through the protective cover for your guidance.

2. Once the suction catheter is in the desired position /depth depress the vacuum control valve to begin suctioning.

3. Remove the suction catheter until the protective sleeve is straight.

4. Repeat steps1-3 as necessary.



Luer Lock Type Closed System Suction Cathete 0



FAQ
1.Q: Where is your factory located?
A: Our factory is located in Guangzhou city, Guangdong Province, China. There are about 80 workers in our factory. We still try to enlarge our capacity. It is about 30 minutes from Guangzhou South Railway Station. Warmly welcome to visit our factory.

2.Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free.Welcome to ask us for a sample if you need it.

3.Q: What is your warranty on your products?
A: 4-5 years quality warranty.

4.Q: How long is your delivery time?
A: Generally it is about 30 days, or it is according to quantity.

5. Q: How could we pay for you?
A: Usually By T/T, or other payments can be negotiable.

6.Q: Do you have any certificates of the items you have?
A: Yes, we have got CE0123, ISO13485, CFDA, and FDA approved for main products.

7.Q: Does this product support customization?
A: Yes, we have an R&D team for new product innovation. We will do our best to achieve your goal.

8.Q: How is your after-sale?
A: Any questions, please feel free to contact us. We have a strict Q&A system. I believe that we have responsibility for the after-sale.
