CE Approval Hot Sale Closed Suction System 16Fr OD 5.5mm

Basic Information
Place of Origin: China
Brand Name: MCreat
Certification: CE, ISO
Model Number: MC-02407
Minimum Order Quantity: 1000 Pieces
Price: negotiable
Packaging Details: Carton
Delivery Time: Depends on Order Quantity
Payment Terms: L/C, T/T
Supply Ability: 100, 000PCS/Month
Detail Information
Type Of Sterilization:: Ethylene Oxide Sterilization Quality Guarantee Period:: Five Years
Logo Printing: Customized Material: Medical Grade PVC
Packaging: Blister Certificate: CE/ISO13485
High Light:

CE Approval Closed Circuit Suction Catheter

,

16Fr 300mm Closed Circuit Suction Catheter

,

5.5mm Diameter suction catheter fr 16


Product Description

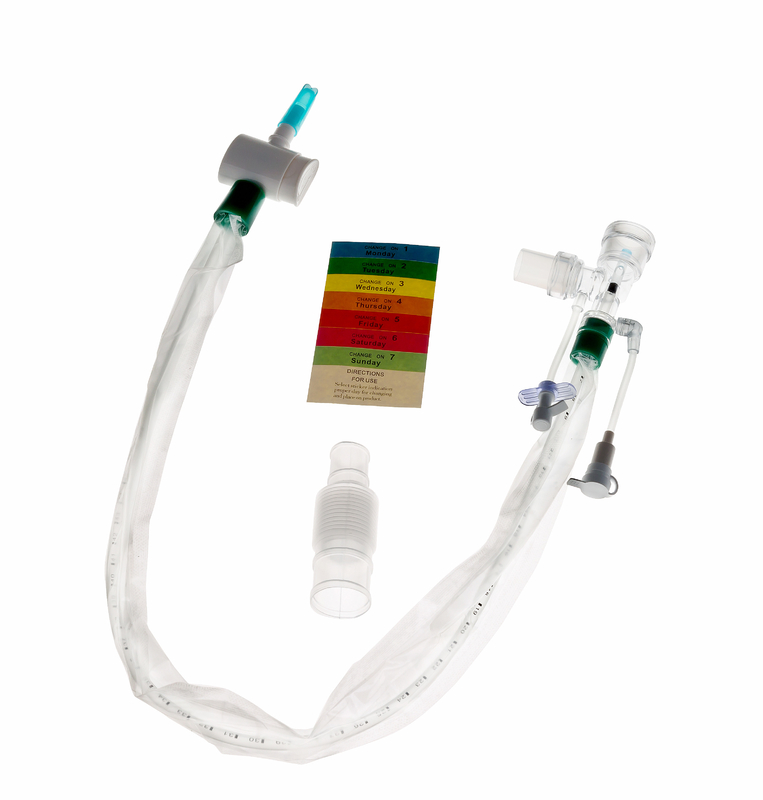

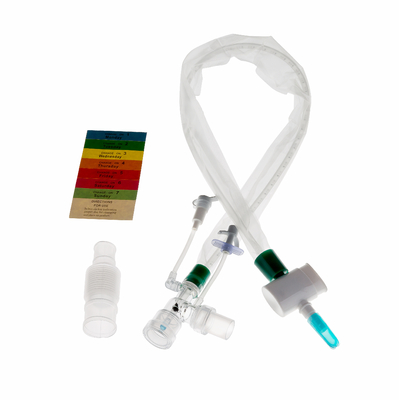

Closed Suction System (L-Piece) 24H Tracheostomy 16Fr 300mm



Features

- Continuous Breathing
Simultaneously ventilation

- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.

- Double Swivel Connector
15mm connector of Double Swivel

- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions

- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available

- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.





Packaging & Delivery

-Packaging Details

-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton

-Delivery Time: Within 20 days. It depends on the quantity of order



Product Description

Closed Suction Catheter Standard Form
Clour Size Products' Specification & Description Tube OD Length of Tube Product Code
Grey Neonatal/24H/Tracheostomy Double Swivel Elbow Tracheostomy, Built in MDI Adapter, Flex Tube 5Fr (1.7mm) 300mm MC-02400
Light Green Neonatal/24H/Tracheostomy Double Swivel Elbow Tracheostomy, Built in MDI Adapter, Flex Tube 6Fr (1.95mm) 300mm MC-02401
Grey Neonatal/24H/Endotracheal Double Swivel Elbow Endotracheal, Built in MDI Adapter, Flex Tube 5Fr (1.7mm) 300mm MC-02410
Light Green Neonatal/24H/Endotracheal Double Swivel Elbow Endotracheal, Built in MDI Adapter, Flex Tube 6Fr (1.95mm) 300mm MC-02411


We can produce the closed suction catheter according to customers' requirements.



CE Approval Hot Sale Closed Suction System 16Fr OD 5.5mm 0



Instructions for Use

*Set up Procedure

1. Inspect the product before use. Do not use it if the package is not intact.

2. Open the sealed package and take out the product.

3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.

4. Connect ventilator tube to the Revolvable Ventilator Connector.

5. Attach the date label to the color ring.

6. Before suctioning commences ensure that the cap of the MDI Port/ irrigation Port is closed.

7.Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/ Tracheostomy tube.

*Suctioning Procedure

Caution-always use the recommended vacuum levels./Consider length of suctioning time

1.Grip the three-way adaptor in one hand and with the other hand feed the suction
a catheter into the Endotracheal tube/ Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.

2.Once the suction catheter is in the desired position/ depth depress the vacuum
Control valve to apply suction.

3. Remove the suction catheter until the protective sleeve is straight.

4.Repeat steps1-3 as necessary.
