| Place of Origin: | China |
|---|---|
| Brand Name: | MCR / OEM |
| Certification: | CE, ISO, FDA |
| Model Number: | MC-07210 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | 2.5-3.1 usd/pc |
| Packaging Details: | Pouch, Box, Carton |
| Delivery Time: | 8-45 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000-100000 pcs |
| Name: | Closed Suction Catheter Automatic Flushing 72H Double Swivel Elbow | Material: | PVC, PU, PC |
|---|---|---|---|
| Size: | 5 - 16 Fr | Relative Type: | 24h/72h/Child/Adult |
| Color Code: | Orange,white,red,blue,green | Instrument Classification: | Class II |
| Package: | 1PCS/Pouch, 10 Pouches/Box, 10 Boxes/Carton | Code: | MC-07210--MC-07203 |
| High Light: | 72H Closed Suction Catheter,Double Swivel Elbow Closed Suction Catheter,Automatic Flushing Closed Suction Catheter |
||

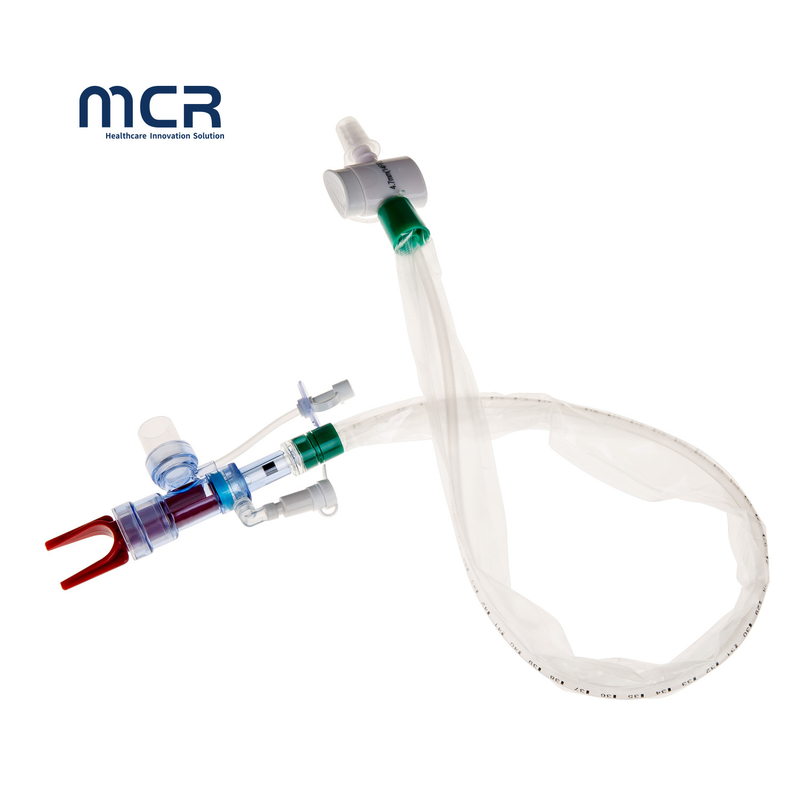

Closed Suction Catheter Automatic Flushing 72H Double Swivel Elbow
Closed suction set is used for who needs suction therapy.
Free Trachea Closed Suction Set is classified as tracheobronchial suction catheter that is intended to aspirate liquid or semi-solid matters from a patient’s upper airway.
Patients who need to maintain the patency and integrity of the airway and who need to remove accumulated pulmonary secretions.
Patients have an ineffective cough and unable to clear the secretion spontaneously.
・Swivel adapter / Y connector / ET connector
・Tracheotomy / Endotracheal type available
・Available in adult and pediatric
・Size: 5Fr/6Fr/8Fr/10Fr/12Fr/14Fr/16Fr /18Fr
・Lengths in 34 and 54cm with depth marks are printed along the catheter shafts in cm.
・Non-DEHP plasticized PVC
Closed Suction Catheter Automatic Flushing 72H Double Swivel Elbow
Product Parameter
|
Product Code |
Size |
Colour Code |
Tube OD (mm) |
Length of Tube (mm) |
|
MC-07210 |
Adult/72H/Endotracheal |
Black |
10Fr(3.35mm) |
600mm |
|
MC-07211 |
Adult/72H/Endotracheal |
White |
12Fr(4.05mm) |
600mm |
|
MC-07212 |
Adult/72H/Endotracheal |
Green |
14Fr(4.75mm) |
600mm |
|
MC-07213 |
Adult/72H/Endotracheal |
Orange |
16Fr(5.45mm) |
600mm |
|
|
|
|
|
|
|
MC-07200 |
Adult/72H/Tracheostomy |
Black |
10Fr(3.35mm) |
300mm |
|
MC-07201 |
Adult/72H/Tracheostomy |
White |
12Fr(4.05mm) |
300mm |
|
MC-07202 |
Adult/72H/Tracheostomy |
Green |
14Fr(4.75mm) |
300mm |
|
MC-07203 |
Adult/72H/Tracheostomy |
Orange |
16Fr(5.45mm) |
300mm |
Advantage
- Continuous Breathing
Simultaneous ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-infection.
Closed Suction Catheter Automatic Flushing 72H Double Swivel Elbow
