| Place of Origin: | China |
|---|---|
| Brand Name: | MCR / OEM |
| Certification: | CE, ISO, FDA |
| Model Number: | MC-22400 |
| Minimum Order Quantity: | 1 Pieces |
| Price: | 2.2-4.5usd/pc |
| Packaging Details: | Pouch, Box, Carton |
| Delivery Time: | 5-45 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 50,000-100,000PCS/Month |
| Size: | 5 - 16 Fr | Instrument Classification: | Class II |
|---|---|---|---|
| Code: | MC-07210--MC-07203 | Package: | 1 Pc/Pouch, 10 Pouches/Box, 10 Boxes/Carton |
| Quality Guarantee Period: | Five Years | Production Capacity: | 50,000-100,000PCS/Month |
| Highlight: | Closed Suction System Double Swivel Elbow,Double Swivel Elbow Y-piece,Disposable Medical Double Swivel Elbow |
||

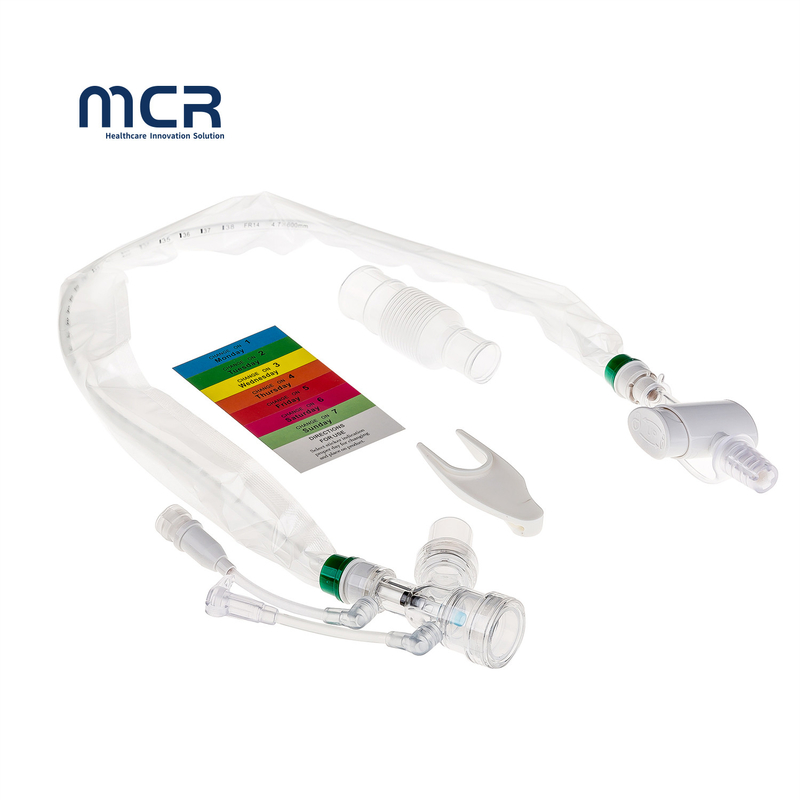

Disposable Medical Equipment Closed Suction System Double Swivel Elbow Y-piece 24 Hours
Feature
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- Continuous Breathing
Simultaneous ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Double Swivel Connector
15mm connector of Double Swivel
Disposable Medical Equipment Closed Suction System Double Swivel Elbow Y-piece 24 Hours
Data Sheet
| Closed Suction Catheter Y-Piece 24H | ||||
| REF(Product ID Number) | Size(product variable) | Color Code | Tube OD (mm) | Length Of Tube(mm) |
| MC-22400 | Neonatal/24H/Tracheostomy | Grey | 5FR(1.7mm) | 300mm |
| MC-22401 | Neonatal/24H/Tracheostomy | Light Green | 6FR(1.95mm) | 300mm |
| MC-22402 | Pediatric/24H/Tracheostomy | Ivory | 7FR(2.3mm) | 300mm |
| MC-22403 | Pediatric/24H/Tracheostomy | Light Blue | 8FR(2.7mm) | 300mm |
| MC-22404 | Adult/24H/Tracheostomy | Black | 10FR(3.35mm) | 300mm |
| MC-22405 | Adult/24H/Tracheostomy | White | 12FR(4.05mm) | 300mm |
| MC-22406 | Adult/24H/Tracheostomy | Green | 14FR(4.75mm) | 300mm |
| MC-22407 | Adult/24H/Tracheostomy | Orange | 16FR(5.45mm) | 300mm |
| MC-22410 | Neonatal/24H/Endotracheal | Grey | 5FR(1.7mm) | 300mm |
| MC-22411 | Neonatal/24H/Endotracheal | Light Green | 6FR(1.95mm) | 300mm |
| MC-22412 | Pediatric/24H/Endotracheal | Ivory | 7FR(2.3mm) | 300mm |
| MC-22413 | Pediatric/24H/Endotracheal | Light Blue | 8FR(2.7mm) | 300mm |
| MC-22414 | Adult/24H/Endotracheal | Black | 10FR(3.35mm) | 600mm |
| MC-22415 | Adult/24H/Endotracheal | White | 12FR(4.05mm) | 600mm |
| MC-22416 | Adult/24H/Endotracheal | Green | 14FR(4.75mm) | 600mm |
| MC-22417 | Adult/24H/Endotracheal | Orange | 16FR(5.45mm) | 600mm |
