| Brand Name: | MCR / OEM |
| Model Number: | MC-02440 |
| MOQ: | 1 Pieces |
| Price: | 2.2-4.5usd/pc |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 50,000-100,000PCS/Month |

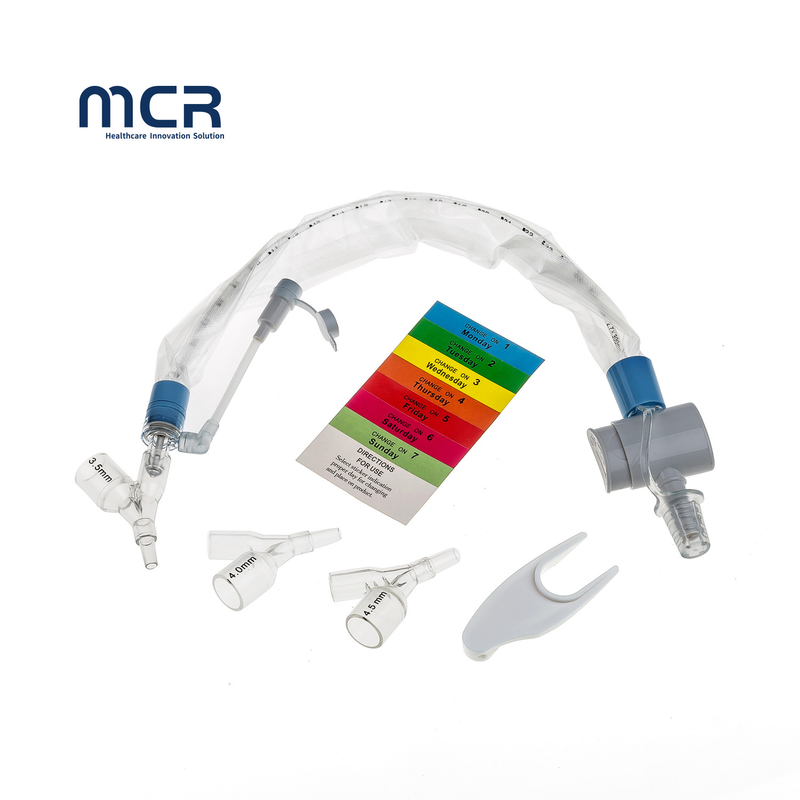

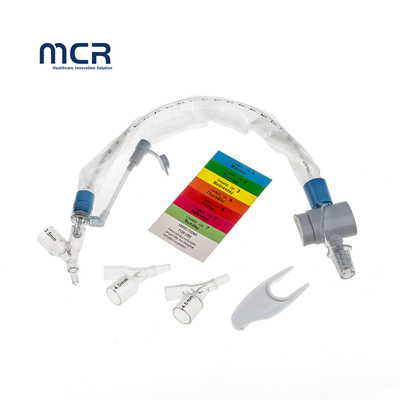

Fr5-Fr24 Closed Suction Catheter with Control for Child 24hours

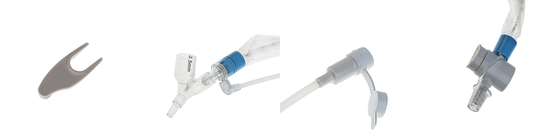

- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.

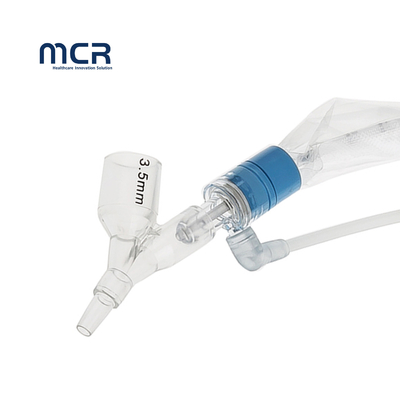

- Y Connector Type
ET "Y" neonatal and pediatric care adapters are available for 5, 6, 7, 8, French sizes closed suction catheter.
Fr5-Fr24 Closed Suction Catheter with Control for Child 24hours
Suctioning Procedure
Caution-always use the recommended vacuum levels./Consider length of suctioning time

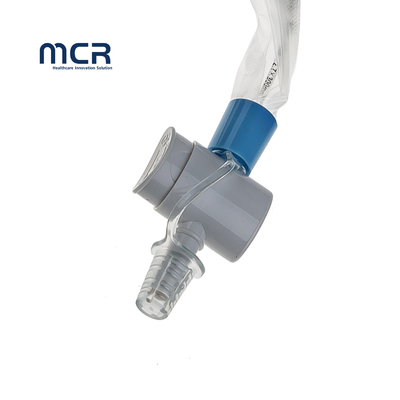

1. Grip the three-way adaptor in one hand and use the other hand to feed the suction catheter into the Endotracheal tube/Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.

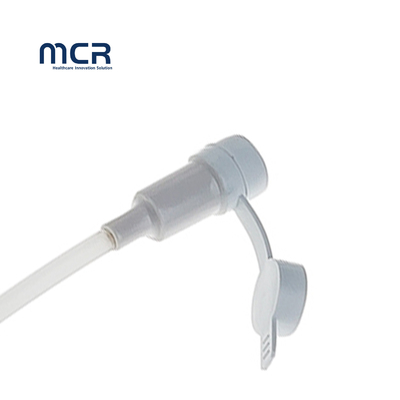

2. Once the suction catheter is in the desired position /depth, depress the vacuum
control valve to begin suctioning.
3. Remove the suction catheter until the protective sleeve is straight.
4. Repeat steps 1-3 as necessary.
Fr5-Fr24 Closed Suction Catheter with Control for Child 24hours
| Closed Suction Catheter Child Type 24H | ||||
| REF(Product ID Number) | Size(product variable) | Color Code | Tube OD (mm) | Length Of Tube(mm) |
| MC-02440 | Neonatal/24H | Grey | 5FR(1.7mm) | 300mm |
| MC-02441 | Neonatal/24H | Light Green | 6FR(1.95mm) | 300mm |
| MC-02442 | Pediatric/24H | Ivory | 7FR(2.3mm) | 300mm |
| MC-02443 | Pediatric/24H | Light Blue | 8FR(2.7mm) | 300mm |
| MC-02444 | Pediatric&Child/24H | Black | 10FR(3.35mm) | 400mm |
| MC-02445 | Big Child/24H | White | 12FR(4.05mm) | 400mm |
