| Brand Name: | MCR / OEM |
| Model Number: | MC-22400--MC-22417 |
| MOQ: | 1 Pieces |
| Price: | 2.2-4.5usd/pc |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 50,000-100,000PCS/Month |

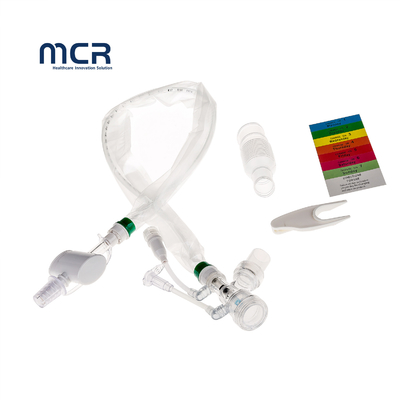

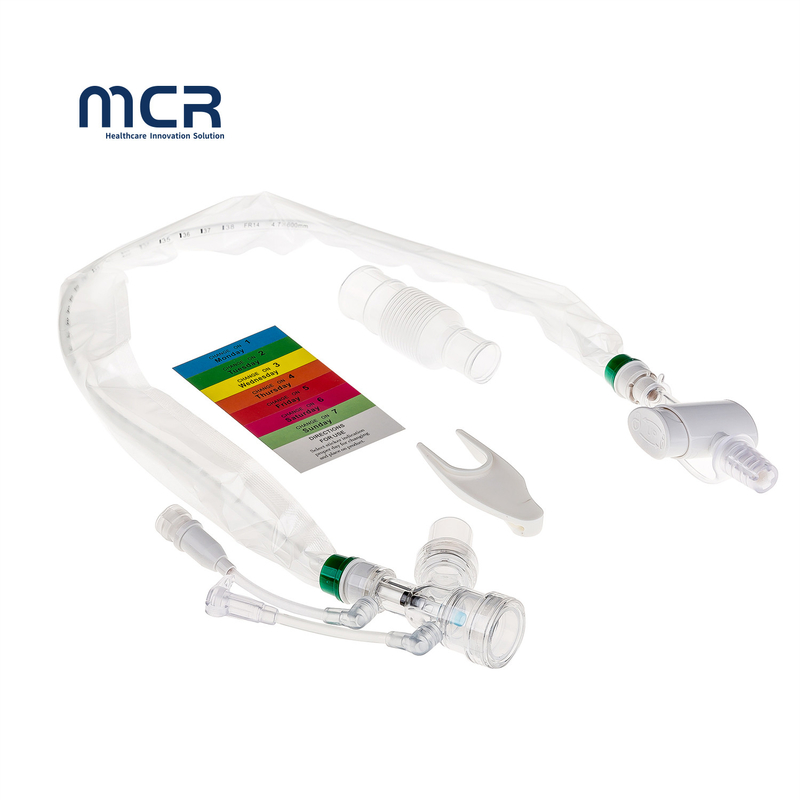

Double Swivel Connector Disposable Closed Suction System Y-Piece 24 Hours
Setup
1. Select appropriate size catheter.

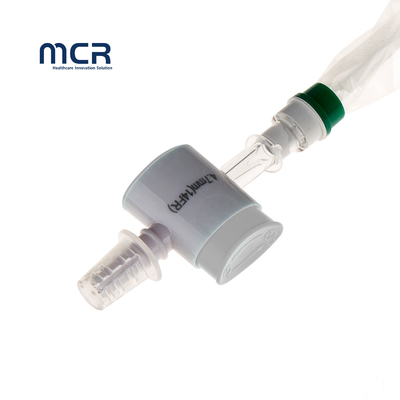

2. Attach thumb control valve to suction tubing.
3. Depress and hold thumb valve and simultaneously adjust vacuum regulator to
desired level.
4. Release thumb control valve and attach catheter between patient and the ventilator circuit.
5. Connect patient end connector with ET Tube ( Or Tracheotomy tube), Connect ventilator end connector with Breathing tube Catheter mount for breathing. Connect negative pressure end connector with Suction line.
Feature
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- Continuous Breathing
Simultaneous ventilation

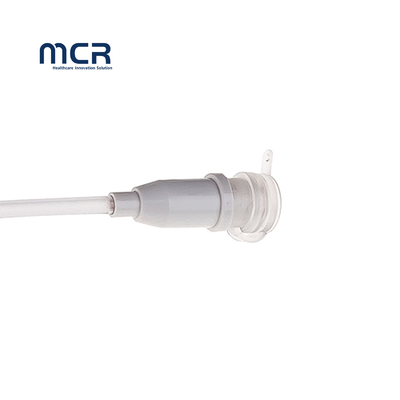

- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.

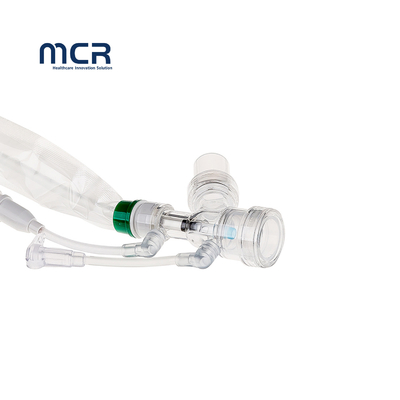

- Double Swivel Connector
15mm connector of Double Swivel
Double Swivel Connector Disposable Closed Suction System Y-Piece 24 Hours
Data Sheet
| Closed Suction Catheter Y-Piece 24H | ||||
| REF(Product ID Number) | Size(product variable) | Color Code | Tube OD (mm) | Length Of Tube(mm) |
| MC-22400 | Neonatal/24H/Tracheostomy | Grey | 5FR(1.7mm) | 300mm |
| MC-22401 | Neonatal/24H/Tracheostomy | Light Green | 6FR(1.95mm) | 300mm |
| MC-22402 | Pediatric/24H/Tracheostomy | Ivory | 7FR(2.3mm) | 300mm |
| MC-22403 | Pediatric/24H/Tracheostomy | Light Blue | 8FR(2.7mm) | 300mm |
| MC-22404 | Adult/24H/Tracheostomy | Black | 10FR(3.35mm) | 300mm |
| MC-22405 | Adult/24H/Tracheostomy | White | 12FR(4.05mm) | 300mm |
| MC-22406 | Adult/24H/Tracheostomy | Green | 14FR(4.75mm) | 300mm |
| MC-22407 | Adult/24H/Tracheostomy | Orange | 16FR(5.45mm) | 300mm |
| MC-22410 | Neonatal/24H/Endotracheal | Grey | 5FR(1.7mm) | 300mm |
| MC-22411 | Neonatal/24H/Endotracheal | Light Green | 6FR(1.95mm) | 300mm |
| MC-22412 | Pediatric/24H/Endotracheal | Ivory | 7FR(2.3mm) | 300mm |
| MC-22413 | Pediatric/24H/Endotracheal | Light Blue | 8FR(2.7mm) | 300mm |
| MC-22414 | Adult/24H/Endotracheal | Black | 10FR(3.35mm) | 600mm |
| MC-22415 | Adult/24H/Endotracheal | White | 12FR(4.05mm) | 600mm |
| MC-22416 | Adult/24H/Endotracheal | Green | 14FR(4.75mm) | 600mm |
| MC-22417 | Adult/24H/Endotracheal | Orange | 16FR(5.45mm) | 600mm |
