| Brand Name: | MCREAT/OEM |
| Model Number: | MC-07213 |
| MOQ: | 1000 Pieces |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100, 000PCS/Month |

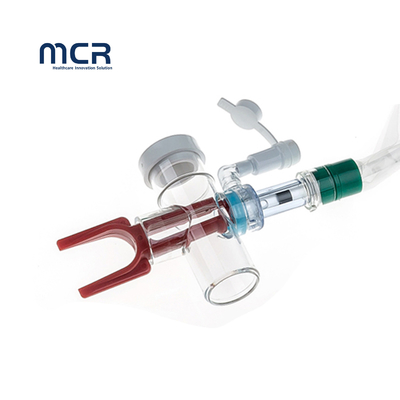

72 Hours Adult Suction Catheter With Double Swivel Elbow
Features
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.
- It is designed with a protective sleeve to isolate the germs inside and help caregivers avoid cross-infection.
-Simultaneous ventilation design will allow the patients' comfort of suctioning without stopping the air ventilation.
-Automatic Flushing Closed Suction System is the only catheter that retracts within a unique and isolated turbulent cleaning chamber. The turbulent cleansing action results in an 89% cleaner catheter tip compared with a standard closed suction system. This reduced colonization may help reduce the risk of VAE and VAP in your ventilated patients.
-A turbulent cleaning chamber creates cleansing action, resulting in a cleaner catheter.
-Hinged valve isolates catheter tip and helps prevent inadvertent lavage.
-Integrated MDI port (optional)
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton
-Delivery Time: Within 20 days. It depends on the quantity of order
Advantage
-Auto-Flushing ,an isolated turbulent cleaning chamber
-Hinged Valve isolates catheter tip
-Unique Blue Soft Tip design
-Turbulent Cleaning Chamber
Product Description
| Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
| Black | Adult/72H/Endotracheal | Double Swivel Elbow Endotracheal, Flex Tube | 10Fr (3.35mm) | 600mm | MC-07210 |
| White | Adult/72H/Endotracheal | Double Swivel Elbow Endotracheal, Flex Tube | 12Fr (4.05mm) | 600mm | MC-07211 |
| Green | Adult/72H/Endotracheal | Double Swivel Elbow Endotracheal, Flex Tube | 14Fr (4.75mm) | 600mm | MC-07212 |
| Orange | Adult/72H/Endotracheal | Double Swivel Elbow Endotracheal, Flex Tube | 16Fr (5.45mm) | 600mm | MC-07213 |
| Black | Adult/72H/Tracheostomy | Double Swivel Elbow Tracheostomy, Flex Tube | 10Fr (3.35mm) | 300mm | MC-07200 |
| White | Adult/72H/Tracheostomy | Double Swivel Elbow Tracheostomy, Flex Tube | 12Fr (4.05mm) | 300mm | MC-07201 |
| Green | Adult/72H/Tracheostomy | Double Swivel Elbow Tracheostomy, Flex Tube | 14Fr (4.75mm) | 300mm | MC-07202 |
| Orange | Adult/72H/Tracheostomy | Double Swivel Elbow Tracheostomy, Flex Tube | 16Fr (5.45mm) | 300mm | MC-07203 |
We can produce the closed suction catheter according to customers' requirements.
Instructions for Use
Video:
https://youtu.be/XIGHWxWpacs
1. Inspect the product before use. Do not use it if the package is not intact.
2. Open the sealed package and take out the product.
3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.
4. Connect ventilator tube to the Revolvable Ventilator Connector.
5. Attach the date label to the color ring.
6. Before suctioning commences ensure that the cap of the MDI Port/ irrigation Port is closed.
7.Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/ Tracheostomy tube.
*Suctioning Procedure
Caution-always use the recommended vacuum levels./Consider length of suctioning time
1.Grip the three-way adaptor in one hand and with the other hand feed the suction
a catheter into the Endotracheal tube/ Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.
2.Once the suction catheter is in the desired position/ depth depress the vacuum
Control valve to apply suction.
3. Remove the suction catheter until the protective sleeve is straight.
4.Repeat steps1-3 as necessary.
