| Brand Name: | MCreat |
| Model Number: | MC-02423 |
| MOQ: | 2000 Pieces |
| Price: | 2.9 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100, 000PCS/Month |

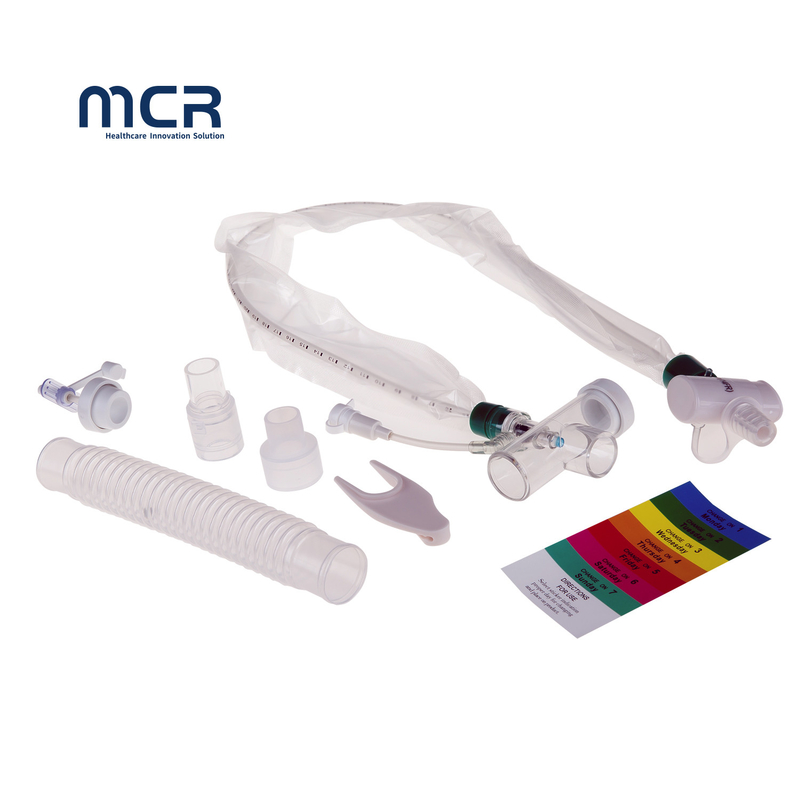

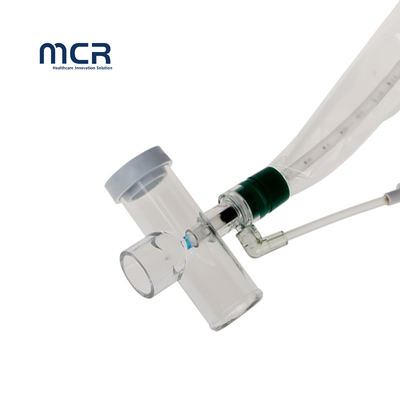

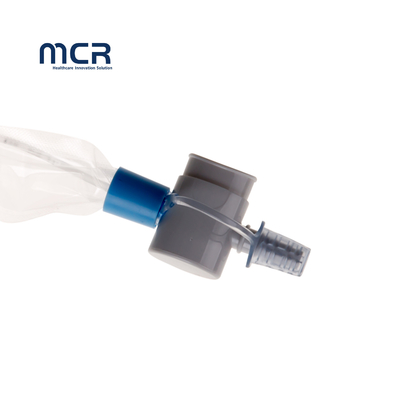

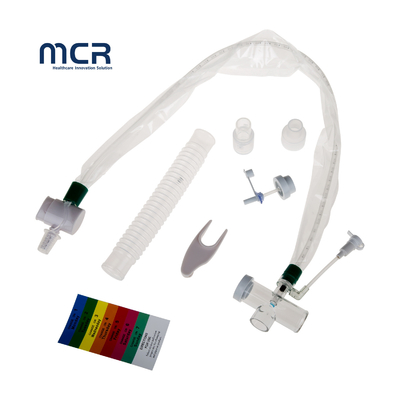

PU Sleeve Closed Suction Catheter For Tracheostomy With Irrigation Port
Features
- Continuous Breathing
Simultaneously ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Double Swivel Connector
15mm connector of Double Swivel
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.
Advantage

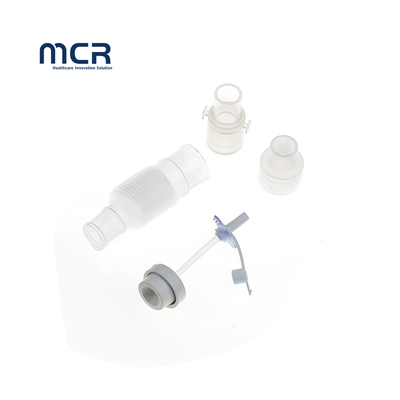

With T-Piece, 15mm Swivel Adapter, 22mm corrugate Tube, and built in MDI Adapter, the
Closed Suction Catheter (T-piece) are designed to safely suction the sputum of the patients
on mechanical ventilation by removing secretions from the airway, while maintaining
ventilation and oxygenation throughout the suctioning procedure.
Product Description
| Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
| Grey | T-Piece/24H/Tracheostomy | T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube | 5Fr | 300mm | MC-02420 |
| Light Green | T-Piece/24H/Tracheostomy | T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube | 6Fr | 300mm | MC-02421 |
| Ivory | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 7Fr | 300mm | MC-02422 |
| Light Blue | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 8Fr | 300mm | MC-02423 |
| Black | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 10Fr | 300mm | MC-02424 |
| White | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 12Fr | 300mm | MC-02425 |
| Green | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 14Fr | 300mm | MC-02426 |
| Orange | T-Piece/24H/Tracheostomy | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 16Fr | 300mm | MC-02427 |
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton
-Delivery Time: Within 20 days. It depends on the quantity of order
We can produce the closed suction catheter according to customers' requirements.
Instructions for Use
*Set up Procedure
1. Inspect the product before use. Do not use it if the package is not intact.
2. Open the sealed package and take out the product.
3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.
4. Connect ventilator tube to the Revolvable Ventilator Connector.
5. Attach the date label to the color ring.
6. Before suctioning commences ensure that the cap of the MDI Port/ irrigation Port is closed.
7.Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/ Tracheostomy tube.
