Y Type Connector Inline Suction Catheters For 24H Child Use

Basic Information
Place of Origin: China
Brand Name: MCR
Certification: FDA/ISO
Model Number: MC-02440
Minimum Order Quantity: 1000
Price: USD 3-3.5/PC
Packaging Details: Ponch, Box, Carton
Delivery Time: 30-45 days
Payment Terms: L/C, Western Union, , T/T
Supply Ability: 480, 000PCS/Year
Detail Information
Instrument Classification Type: Class II Certificates: ISO13485/ FDA
Length: 30-40 Cm Logo Printing: Customized
Material: Polyurethane Sleeve Quality Guarantee Period: Five Years
Sterility: Sterilize Type Of Sterilization: Ethylene Oxide Sterilization
Usage: Single Use Size: 5Fr,6Fr,7Fr,8Fr,10Fr,12Fr
Oem: Yes Odm: Yes
Using Time: 24Hours
High Light:

24H Child Use Suction Catheters

,

Inline Suction Catheters

,

Y Type Connector Suction Catheters


Product Description

Y Type Connector Inline Suction Catheters For 24H Child Use





A Closed Suction System with the possibility of cleaning the catheter without lavage, hence without respiration interruption.

The catheter is isolated from the trachea with triple-swivel and vac control.Ideal for routine hospital use in the ICU with your

Ventilated Patients.

A whole range of problems are encountered during long-term ventilation in everyday hospital practice.

We have developed the OptiFlo closed suction system in order to make ventilation especially safe and hygienic,

both for patient and nursing staff.

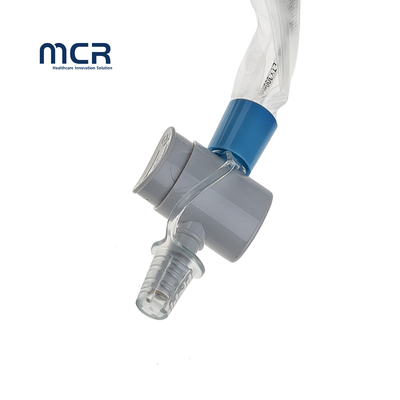

Y Type Connector Inline Suction Catheters For 24H Child Use 0



- It is designed with a protective sleeve to isolate the germs inside and help caregivers avoid cross-infection.

-Simultaneously ventilation design will allow the patients comfort of suctioning without stopping the air ventilation.

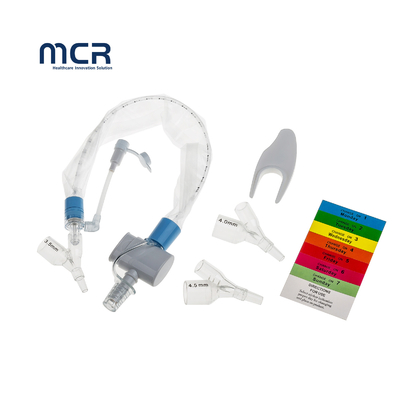

Y Type Connector Inline Suction Catheters For 24H Child Use 1





Feature


- Continuous Breathing

Simultaneously ventilation

- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.

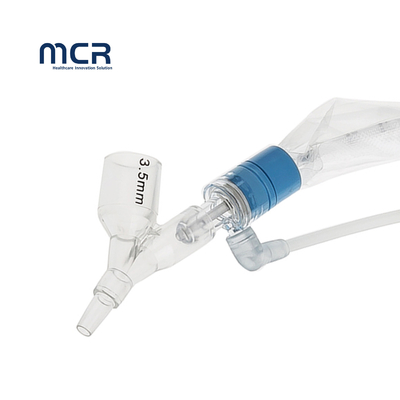

- Y Connector Type
ET "Y" neonatal and pediatric care adapters are available for 5, 6, 7, 8, French sizes closed suction catheter.

- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions

- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available

- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.

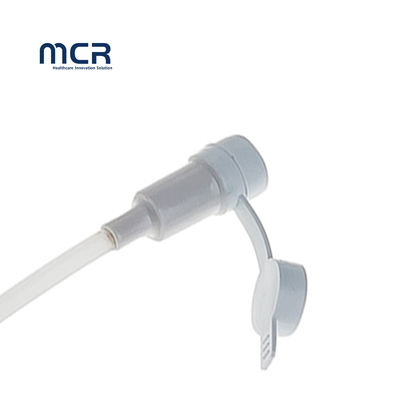

-Irrigation Port with Non-Return Valve
The non-return valve prevents backflow leakage during washing and aerosolized secretion contamination.



Advantages at a glance…

no disconnection of tube

continuous ventilation

no Peep-loss

improved PEEP-seal

no drop in saturation

secretion control

catheter material is antibacterial

reduction of cerebral pressure

improved patient tolerance

extra-soft sleeve

lockable rinsing chamber



Product Data Sheet





Product Code  Size Color Code Tube Code(mm) Length of Tube(mm)
MC-02440 Neonatal/24H Grey 5Fr(1.7mm) 300mm
MC-02441 Neonatal/24H Light Green 6Fr(1.95mm) 300mm
MC-02442 Pediatric/24H Lvory 7Fr(2.3mm) 300mm
MC-02443 Pediatric/24H Light Blue 8Fr(2.7mm) 300mm
MC-02444 Pediatric&Child/24H Black 10Fr(3.35mm) 400mm
MC-02445 Big Child/24H While 12Fr(4.05mm) 400mm
