Single Use Closed Suction Catheter With Mdi Port And Irrigation Port

Basic Information
Place of Origin: China
Brand Name: MCreat
Certification: ISO
Model Number: MC-07220
Minimum Order Quantity: 1000 Pieces
Price: 2.9
Packaging Details: Carton
Delivery Time: Depends on Order Quantity
Payment Terms: L/C, T/T
Supply Ability: 100, 000PCS/Month
Detail Information
Type Of Sterilization:: Ethylene Oxide Sterilization Quality Guarantee Period:: Five Years
Material: Medical Grade PVC OEM: Printed Logo
Packaging: Blister Instrument Classification: Class II
Style: Tpcs Oem: Yes
Odm: Yes Usage: Prvent VAE VAP
High Light:

Irrigation Port Closed Suction Catheter

,

Single Use Closed Suction Catheter

,

Mdi Port Closed Suction Catheter


Product Description

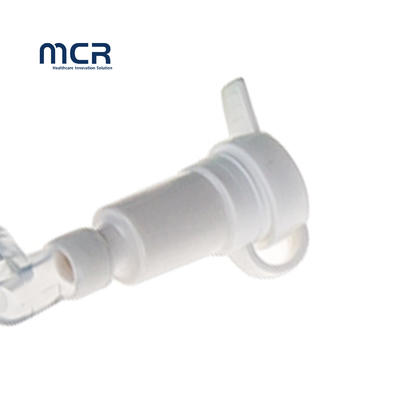

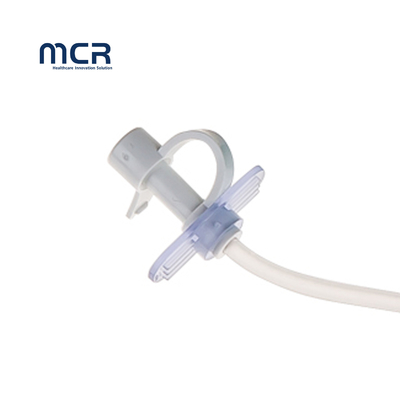

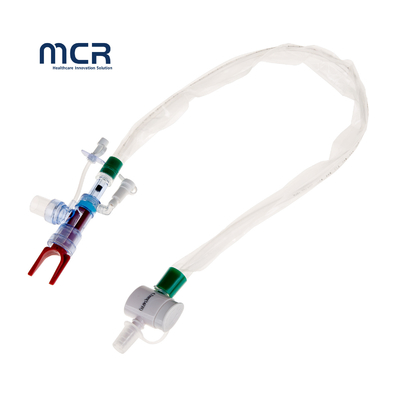

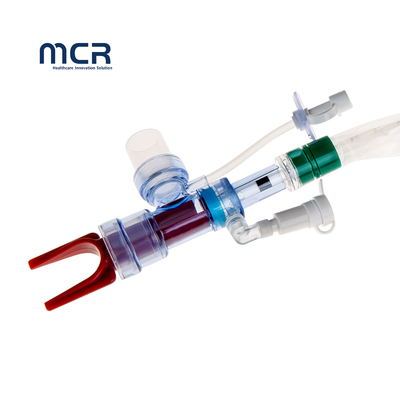

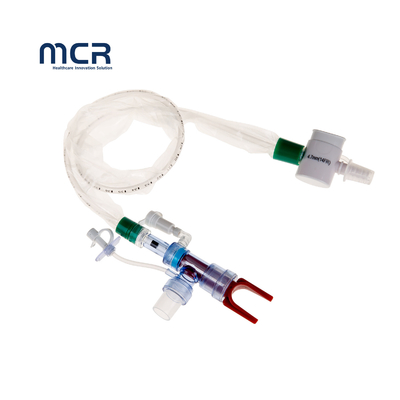

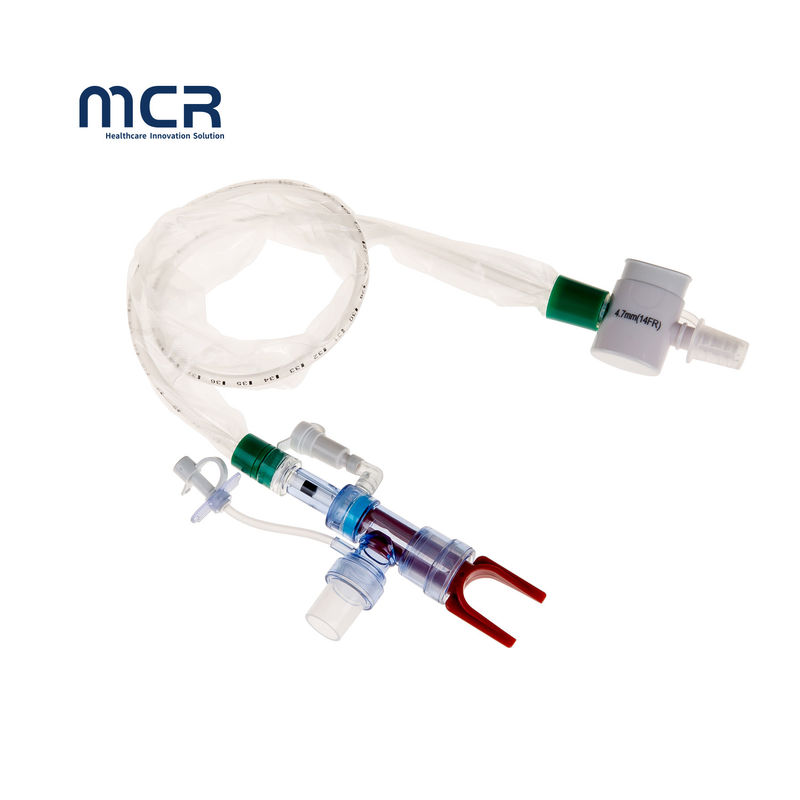

Single Use Closed Suction Catheter with Mdi Port and Irrigation Port



A Closed Suction System with the possibility of cleaning the catheter without lavage, hence without respiration interruption. The catheter is isolated from the trachea with triple-swivel and vac control.

Ideal for routine hospital use in the ICU with your Ventilated Patients

A whole range of problems are encountered during long-term ventilation in everyday hospital practice. We have developed the OptiFlo closed suction system in order to make ventilation especially safe and hygienic, both for patient and nursing staff.


Single Use Closed Suction Catheter With Mdi Port And Irrigation Port 0Single Use Closed Suction Catheter With Mdi Port And Irrigation Port 1Single Use Closed Suction Catheter With Mdi Port And Irrigation Port 2Single Use Closed Suction Catheter With Mdi Port And Irrigation Port 3Single Use Closed Suction Catheter With Mdi Port And Irrigation Port 4

Product Description

-Closed Suction Catheter Standard Form
Clour Size Products' Specification & Description Tube OD Length of Tube Product Code
Black T-Piece Adult/72H/Endotracheal T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube 10Fr (3.35mm) 600mm MC-07230
White T-Piece Adult/72H/Endotracheal T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube 12Fr (4.05mm) 600mm MC-07231
Green T-Piece Adult/72H/Endotracheal T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube 14Fr (4.75mm) 600mm MC-07232
Orange T-Piece Adult/72H/Endotracheal T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube 16Fr (5.45mm) 600mm MC-07233
Black T-Piece Adult/72H/Tracheostomy T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube 10Fr (3.35mm) 300mm MC-07220
White T-Piece Adult/72H/Tracheostomy T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube 12Fr (4.05mm) 300mm MC-07221
Green T-Piece Adult/72H/Tracheostomy T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube 14Fr (4.75mm) 300mm MC-07222
Orange T-Piece Adult/72H/Tracheostomy T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube 16Fr
(5.45mm)
300mm MC-07223



Advantage

-Auto-Flushing



-Hinged Valve



-Unique Blue Soft Tip



-Turbulent Cleaning Chamber



Packaging & Delivery

-Packaging Details

-Packing: 1pc/sterilized pouch, 10pcs/inner box, Outer packing: 100pcs/shipping carton

-Delivery Time: Within 20 days. It depends on the quantity of order.


-Instructions for Use

Set up Procedure
1. Inspect the product before use. Do not use it if the package is not intact.

2. Open the sealed package and remove the product.

3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.

4. Connect ventilator tube to the Revolvable Ventilator Connector.

5. Attach the date label to the color ring.

6. Before suctioning commences, ensure that the cap of the MDI Port and Irrigation Port is closed.

7. Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/Tracheostomy tube.



Packaging & Delivery

-Packaging Details

-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton

-Delivery Time: Within 20 days. It depends on the quantity of order



Product Description

Closed Suction Catheter Standard Form
