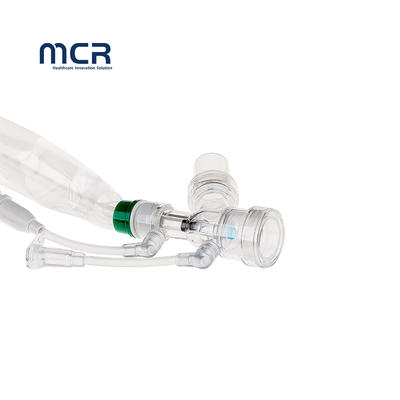

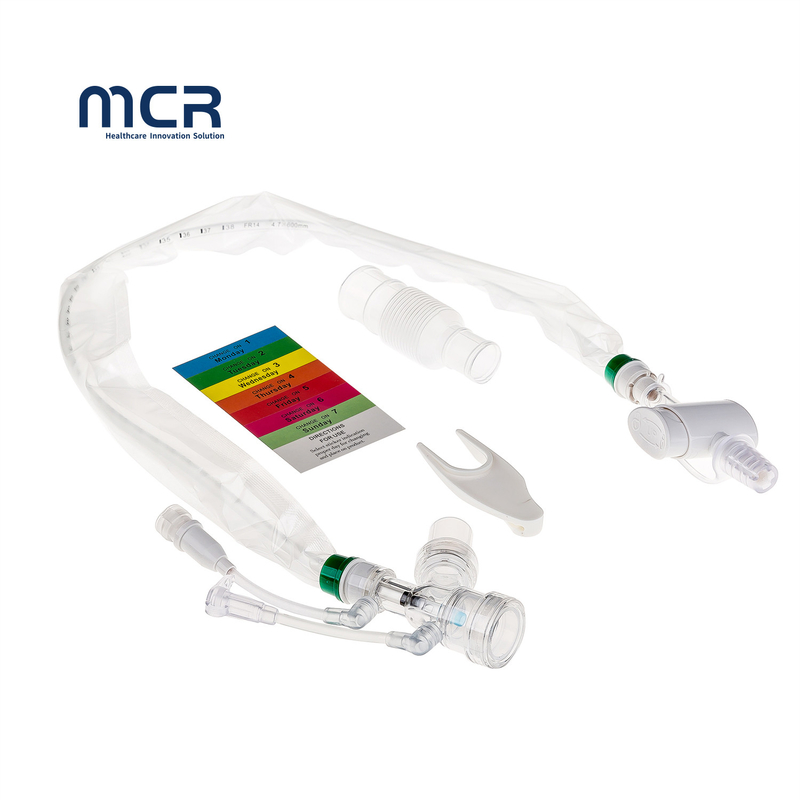

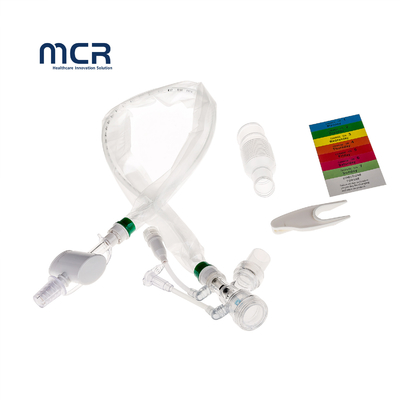

Closed Suction System 24H Y-Piece CSC Medical Equipment

Detail Information

Place of Origin:

China

Certification:

FDA, CE, ISO

Name:

Closed Suction Catheter

Size:

5 - 16 Fr

Color Code:

Orange,white,red,blue,green

Origin:

China

Usage:

Single-use

Application:

Endotracheal And Tracheostomy

Packaging Details:

1pc/sterilized pouch, 10pcs/inner box, Outer packing: 100pcs

Supply Ability:

50,000-100,000CS/Month

Highlight:

Product Description

Closed Suction System 24H Y-Piece CSC Medical Equipment

1. Select appropriate catheter size

2.Attach thumb control valve to suction tubing

3.Depress thumb control valve and adjust vacuum pressure simultaneously

4. Release control valve and attach catheter between the patient and the ventilator circuit.

Closed Suction System 24H Y-Piece CSC Medical Equipment

Closed Suction Catheter Y-Piece 24H
REF(Product ID Number)	Size(product variable)	Color Code	Tube OD (mm)	Length Of Tube(mm)
MC-22400	Neonatal/24H/Tracheostomy	Grey	5FR(1.7mm)	300mm
MC-22401	Neonatal/24H/Tracheostomy	Light Green	6FR(1.95mm)	300mm
MC-22402	Pediatric/24H/Tracheostomy	Ivory	7FR(2.3mm)	300mm
MC-22403	Pediatric/24H/Tracheostomy	Light Blue	8FR(2.7mm)	300mm
MC-22404	Adult/24H/Tracheostomy	Black	10FR(3.35mm)	300mm
MC-22405	Adult/24H/Tracheostomy	White	12FR(4.05mm)	300mm
MC-22406	Adult/24H/Tracheostomy	Green	14FR(4.75mm)	300mm
MC-22407	Adult/24H/Tracheostomy	Orange	16FR(5.45mm)	300mm
MC-22410	Neonatal/24H/Endotracheal	Grey	5FR(1.7mm)	300mm
MC-22411	Neonatal/24H/Endotracheal	Light Green	6FR(1.95mm)	300mm
MC-22412	Pediatric/24H/Endotracheal	Ivory	7FR(2.3mm)	300mm
MC-22413	Pediatric/24H/Endotracheal	Light Blue	8FR(2.7mm)	300mm
MC-22414	Adult/24H/Endotracheal	Black	10FR(3.35mm)	600mm
MC-22415	Adult/24H/Endotracheal	White	12FR(4.05mm)	600mm
MC-22416	Adult/24H/Endotracheal	Green	14FR(4.75mm)	600mm
MC-22417	Adult/24H/Endotracheal	Orange	16FR(5.45mm)	600mm
