| Brand Name: | MCR / OEM |
| Model Number: | MC-22400 |
| MOQ: | 5000 Pieces |
| Price: | 3-3.4usd/pc |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 50,000-100,000PCS/Month |

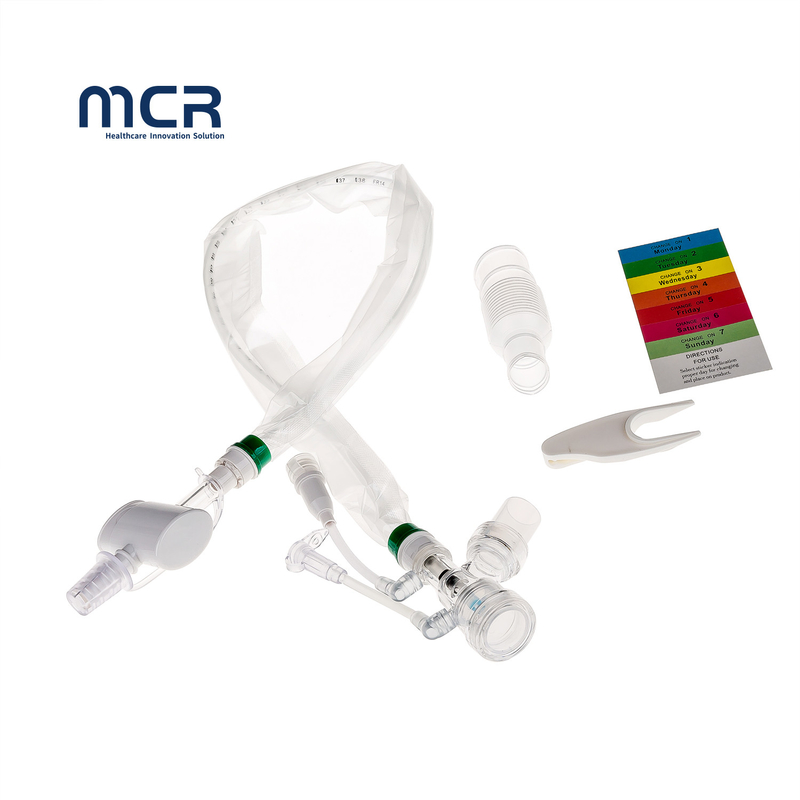

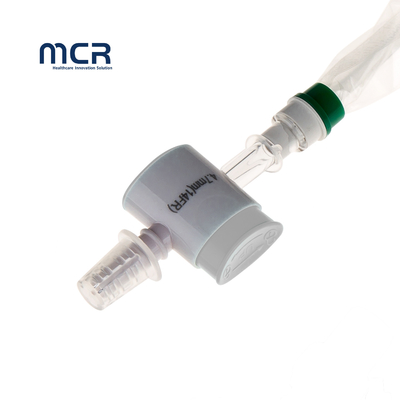

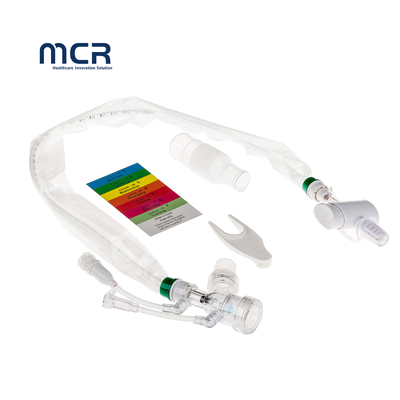

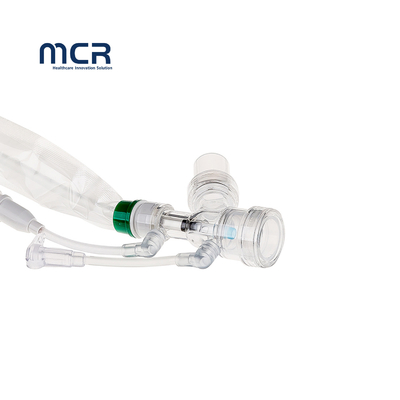

24 Hours Y-Piece Adaptor Closed Suction Catheter with Soft Tip
A Closed Suction System with the possibility of cleaning the catheter without lavage, hence without respiration interruption. The catheter is isolated from the trachea with triple-swivel and vac control.
Ideal for routine hospital use in the ICU with your Ventilated Patients
A whole range of problems are encountered during long-term ventilation in everyday hospital practice. We have developed the OptiFlo closed suction system in order to make ventilation especially safe and hygienic, both for patient and nursing staff.
Ventilator associated pneumonia (VAP) is a hospital acquired disease, which can be efficiently fought when applying certain strategies. It has a significant impact on patient’s health, length of stay and hospital cost. Closed suction greatly reduces the potential for contamination from the bacteria which cause VAP. Maintaining a closed breathing system is part of the ventilator care bundle, designed to reduce the incidence of VAP in the hospital.
Closed suction enables a clinician to clear the lungs of secretions whilst maintaining ventilation and minimising contamination with the least possible disruption to the patient.
The MCR features an ultra clear, new softer sleeve. This allows the clinician greater feel when inserting the catheter with optimum visibility of blockage assessments. Our suction control valve is responsive and allows for single handed control of the applied suction force. The positive locking mechanism is designed to prevent suction being accidentally applied.
MCR closed suction systems are available for 24 hour or 72 hour usage depending on patient requirements. There are two length options to allow attachment to either endotracheal or tracheostomy tubes. The endotracheal products feature a catheter length of 54cm and the tracheostomy tube variants have a catheter length of 30.5cm.
Data Sheet
| Closed Suction Catheter Y-Piece 24H | ||||
| REF(Product ID Number) | Size(product variable) | Color Code | Tube OD (mm) | Length Of Tube(mm) |
| MC-22400 | Neonatal/24H/Tracheostomy | Grey | 5FR(1.7mm) | 300mm |
| MC-22401 | Neonatal/24H/Tracheostomy | Light Green | 6FR(1.95mm) | 300mm |
| MC-22402 | Pediatric/24H/Tracheostomy | Ivory | 7FR(2.3mm) | 300mm |
| MC-22403 | Pediatric/24H/Tracheostomy | Light Blue | 8FR(2.7mm) | 300mm |
| MC-22404 | Adult/24H/Tracheostomy | Black | 10FR(3.35mm) | 300mm |
| MC-22405 | Adult/24H/Tracheostomy | White | 12FR(4.05mm) | 300mm |
| MC-22406 | Adult/24H/Tracheostomy | Green | 14FR(4.75mm) | 300mm |
| MC-22407 | Adult/24H/Tracheostomy | Orange | 16FR(5.45mm) | 300mm |
| MC-22410 | Neonatal/24H/Endotracheal | Grey | 5FR(1.7mm) | 300mm |
| MC-22411 | Neonatal/24H/Endotracheal | Light Green | 6FR(1.95mm) | 300mm |
| MC-22412 | Pediatric/24H/Endotracheal | Ivory | 7FR(2.3mm) | 300mm |
| MC-22413 | Pediatric/24H/Endotracheal | Light Blue | 8FR(2.7mm) | 300mm |
| MC-22414 | Adult/24H/Endotracheal | Black | 10FR(3.35mm) | 600mm |
| MC-22415 | Adult/24H/Endotracheal | White | 12FR(4.05mm) | 600mm |
| MC-22416 | Adult/24H/Endotracheal | Green | 14FR(4.75mm) | 600mm |
| MC-22417 | Adult/24H/Endotracheal | Orange | 16FR(5.45mm) | 600mm |
Feature
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- Continuous Breathing
Simultaneous ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
