Y Design Child Type Closed Suction Tube with 2.5,3.0,3.5 Connector and 30-40 cm Length

Y Design Child Type Closed Suction Tube with 2.5,3.0,3.5 Connector and 30-40 cm Length

Brand Name:	MCR
Model Number:	MC-02446
MOQ:	5000
Price:	USD 2.7-2.9/PC
Payment Terms:	L/C,Western Union,,T/T
Supply Ability:	480, 000PCS/Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

FDA/ISO

Instrument Classification Type:

Class II

Certificates:

ISO13485/ FDA

Length:

30-40 Cm

Logo Printing:

Customized

Material:

Polyurethane Sleeve

Quality Guarantee Period:

Five Years

Sterility:

Sterilize

Type Of Sterilization:

Ethylene Oxide Sterilization

Usage:

Single Use

Size:

5Fr,6Fr,7Fr,8Fr

Oem:

Yes

Using Time:

72Hours

Certificate:

Fda,iso

Packaging Details:

Ponch, Box, Carton

Supply Ability:

480, 000PCS/Year

Highlight:

3.0 connector Closed Intubation Suction Tube

2.5 connector Closed Intubation Suction Tube

3.5 connector Closed Intubation Suction Tube

Product Description

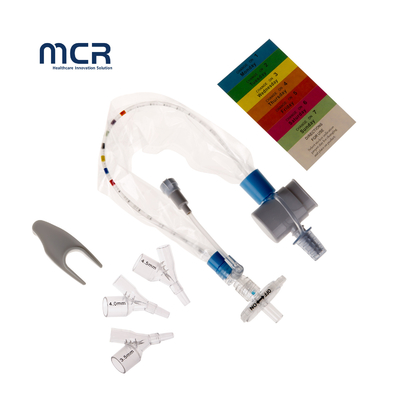

Y Design Child Type Closed Intubation Suction Tube With 2.5, 3.0, 3.5 Connector

Product Features

Closed suction system allows catheter cleaning without lavage or respiration interruption
Triple-swivel and vac control isolates catheter from trachea
Protective sleeve design prevents cross-infection
Simultaneous ventilation maintains patient comfort during suctioning
Transparent and lightweight construction for pediatric/neonatal patients

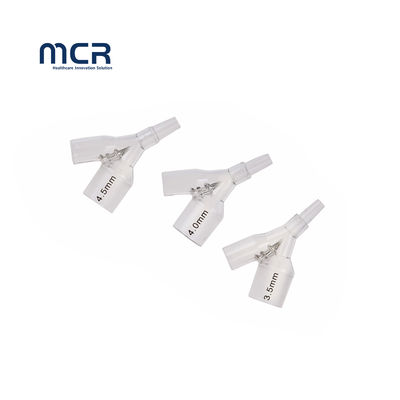

Y-adapter with MDI port designed for high frequency ventilation

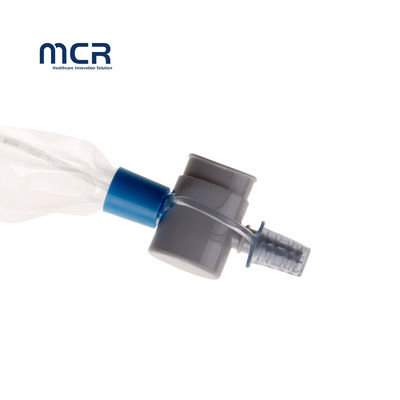

Minimum dead space adapter with MDI port
Replaceable adapters per pack
Color depth indicator and size identification coding
Ergonomic design with security lock

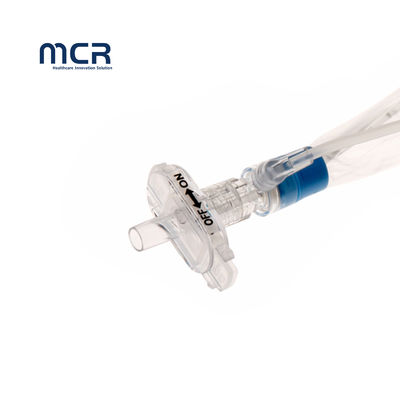

Suction control switch for one-handed operation
Catheter features smooth tip and side holes

Key Advantages

No disconnection of tube required
Continuous ventilation maintained
No PEEP-loss
Improved PEEP-seal
No drop in saturation
Effective secretion control
Antibacterial catheter material
Reduced cerebral pressure
Improved patient tolerance
Extra-soft sleeve
Lockable rinsing chamber

Product Specifications

Product Code	Size	Color Code	Tube Code (mm)	Length of Tube (mm)
MC-02440	Neonatal/24H	Grey	5Fr(1.7mm)	300mm
MC-02441	Neonatal/24H	Light Green	6Fr(1.95mm)	300mm
MC-02442	Pediatric/24H	Ivory	7Fr(2.3mm)	300mm
MC-02443	Pediatric/24H	Light Blue	8Fr(2.7mm)	300mm
MC-02444	Pediatric & Child/24H	Black	10Fr(3.35mm)	400mm
MC-02445	Big Child/24H	White	12Fr(4.05mm)	400mm

Product Images

About MCR Medical

MCR Medical, headquartered in Hua Chuang Industrial Park, Guangzhou, China, has been providing high-quality medical disposable products globally since 2018. Specializing in anesthesia, respiratory, gastroenterology, and home care products, our solutions serve markets across North America, Europe, South America, Asia, and the Middle East.

Certifications: GMP, ISO 13485, CE certified, and FDA registered.

Our 2,400 square meter 100,000-level purification workshop features advanced production lines and inspection facilities. With a dedicated R&D team and strict quality control processes from raw materials to finished products, we ensure consistent excellence in all our medical solutions.
