| Brand Name: | MCreat |
| Model Number: | MC-02402 |
| MOQ: | 5000 Pieces |
| Price: | US$ 3.2 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100, 000PCS/Month |

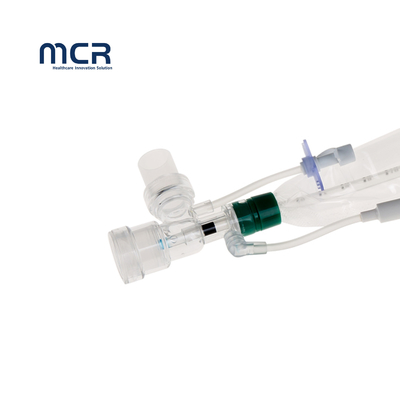

Swivel Connector Simple L Shape Connector with Irrigation Port and Mdi Port
Product Descipition
Features
- Continuous Breathing
Simultaneously ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Double Swivel Connector
15mm connector of Double Swivel
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.

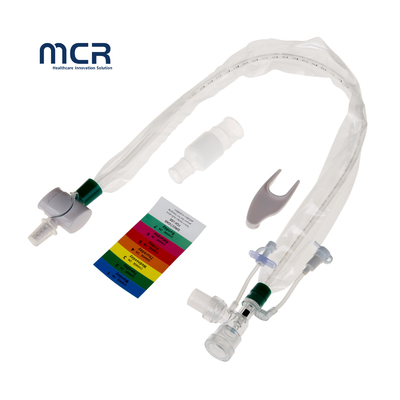

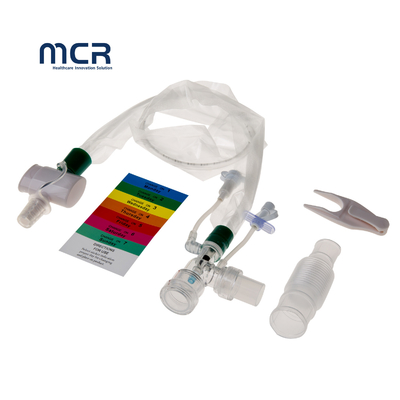

A Closed Suction System with the possibility of cleaning the catheter without lavage, hence without respiration interruption. The catheter is isolated from the trachea with triple-swivel and vac control.
Ideal for routine hospital use in the ICU with your Ventilated Patients
A whole range of problems are encountered during long-term ventilation in everyday hospital practice. We have developed the OptiFlo closed suction system in order to make ventilation especially safe and hygienic, both for patient and nursing staff.
Product Parameter
| Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
| Grey | Neonatal/24H/Tracheostomy | Double Swivel Elbow Tracheostomy, Built in MDI Adapter, Flex Tube | 5Fr (1.7mm) | 300mm | MC-02400 |
| Light Green | Neonatal/24H/Tracheostomy | Double Swivel Elbow Tracheostomy, Built in MDI Adapter, Flex Tube | 6Fr (1.95mm) | 300mm | MC-02401 |
| Grey | Neonatal/24H/Endotracheal | Double Swivel Elbow Endotracheal, Built in MDI Adapter, Flex Tube | 5Fr (1.7mm) | 300mm | MC-02410 |
| Light Green | Neonatal/24H/Endotracheal | Double Swivel Elbow Endotracheal, Built in MDI Adapter, Flex Tube | 6Fr (1.95mm) | 300mm | MC-02411 |
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton
-Delivery Time: Within 20 days. It depends on the quantity of order
Product Description
Suctioning Procedure
Caution-always use the recommended vacuum levels./Consider length of suctioning time
1.Grip the three-way adaptor in one hand and with the other hand feed the suction
a catheter into the Endotracheal tube/ Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.
2.Once the suction catheter is in the desired position/ depth depress the vacuum
Control valve to apply suction.
3. Remove the suction catheter until the protective sleeve is straight.
4.Repeat steps1-3 as necessary.
