| Brand Name: | MCR / OEM |
| Model Number: | MC-22400 |
| MOQ: | 1 Pieces |
| Price: | 2.2-4.5usd/pc |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 50,000-100,000PCS/Month |

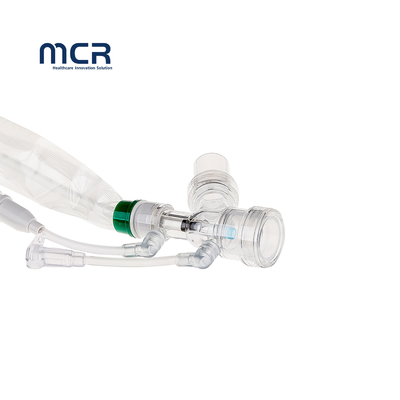

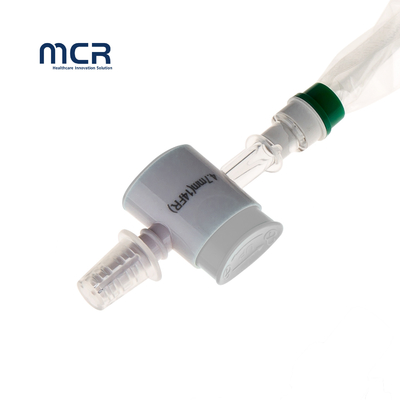

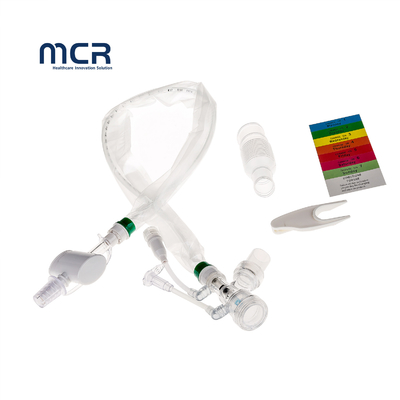

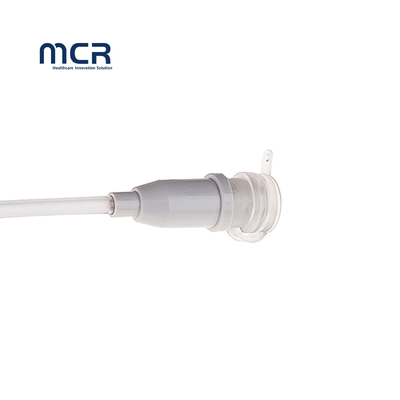

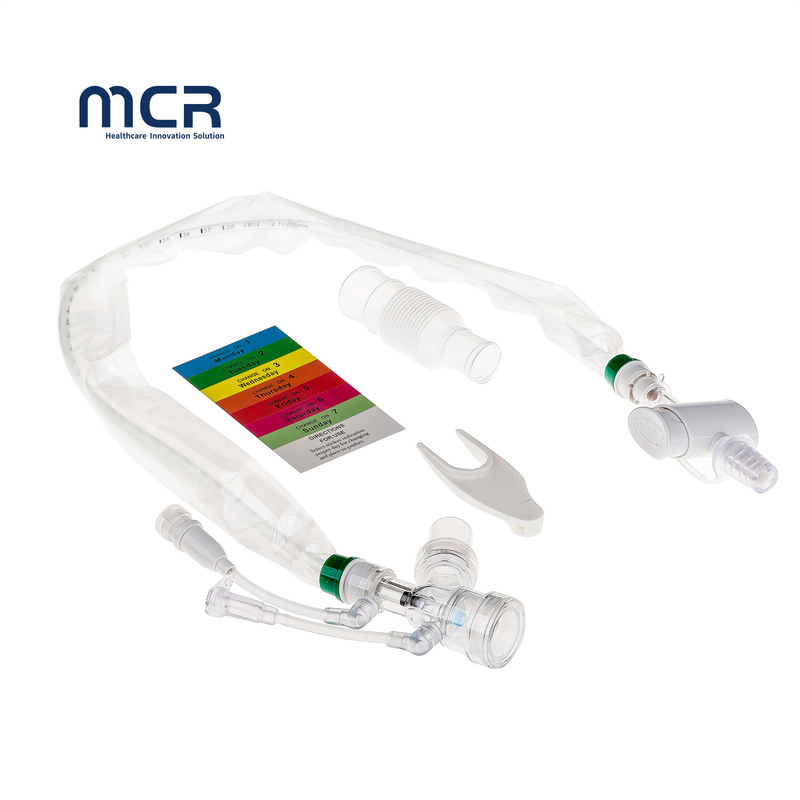

Sterile Closed Suction Catheter With Double Swivel Adapter
Data Sheet
| Closed Suction Catheter Y-Piece 24H | ||||
| REF(Product ID Number) | Size(product variable) | Color Code | Tube OD (mm) | Length Of Tube(mm) |
| MC-22400 | Neonatal/24H/Tracheostomy | Grey | 5FR(1.7mm) | 300mm |
| MC-22401 | Neonatal/24H/Tracheostomy | Light Green | 6FR(1.95mm) | 300mm |
| MC-22402 | Pediatric/24H/Tracheostomy | Ivory | 7FR(2.3mm) | 300mm |
| MC-22403 | Pediatric/24H/Tracheostomy | Light Blue | 8FR(2.7mm) | 300mm |
| MC-22404 | Adult/24H/Tracheostomy | Black | 10FR(3.35mm) | 300mm |
| MC-22405 | Adult/24H/Tracheostomy | White | 12FR(4.05mm) | 300mm |
| MC-22406 | Adult/24H/Tracheostomy | Green | 14FR(4.75mm) | 300mm |
| MC-22407 | Adult/24H/Tracheostomy | Orange | 16FR(5.45mm) | 300mm |
| MC-22410 | Neonatal/24H/Endotracheal | Grey | 5FR(1.7mm) | 300mm |
| MC-22411 | Neonatal/24H/Endotracheal | Light Green | 6FR(1.95mm) | 300mm |
| MC-22412 | Pediatric/24H/Endotracheal | Ivory | 7FR(2.3mm) | 300mm |
| MC-22413 | Pediatric/24H/Endotracheal | Light Blue | 8FR(2.7mm) | 300mm |
| MC-22414 | Adult/24H/Endotracheal | Black | 10FR(3.35mm) | 600mm |
| MC-22415 | Adult/24H/Endotracheal | White | 12FR(4.05mm) | 600mm |
| MC-22416 | Adult/24H/Endotracheal | Green | 14FR(4.75mm) | 600mm |
| MC-22417 | Adult/24H/Endotracheal | Orange | 16FR(5.45mm) | 600mm |
This type of closed suction system mainly for Respiratory diseases /general anaesthesia surgery/emergency rescue require tracheal intubation (or tracheotomy) and artificial respirators to support treatment.
Patients cannot be separated from the ventilator and treated without interrupting mechanical ventilation.
With 360°swivel adapter provides optimal comfort and flexibility for both patient and nursing staff.
Irrigation port equipped with one way valve allows for normal saline to clean catheter efficiently.
MDI port for a more effective, quick and convenient drug delivery.
