| Brand Name: | MCR / OEM |
| Model Number: | MC-07210---MC07203 |
| MOQ: | 1 Pieces |
| Price: | 2.6-4.5usd/pc |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50,000-100,000PCS/Month |

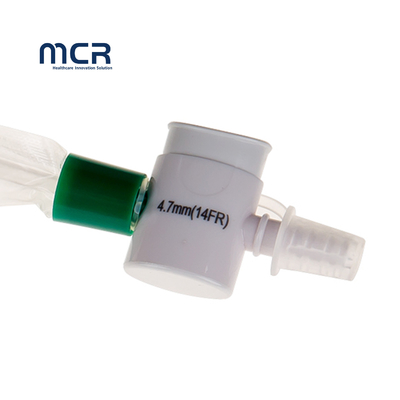

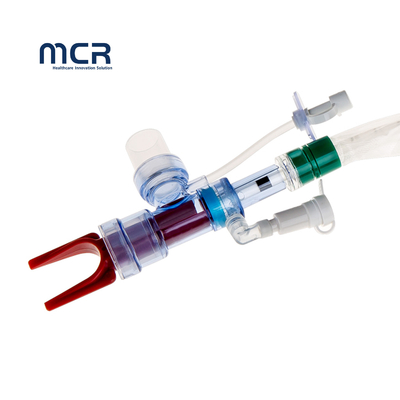

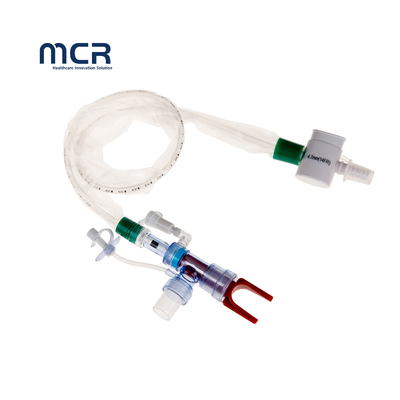

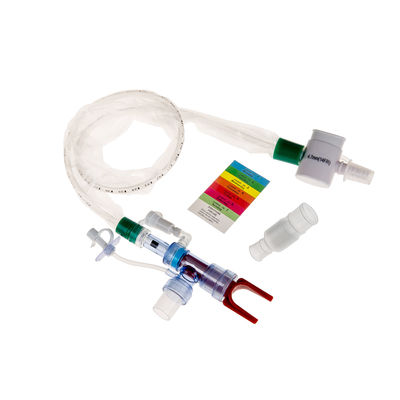

L Type Closed Suction System Automatic Flushing 72H Double Swivel Elbow
1.Closed suction catheter set consists of a three-way valve, a control box Assembly and a suction catheter.
2.The suction catheter extends from the three-way valve to the control box and is covered in the film.The three-way valve has distilled water delivery port for cleaning after use.
3.When in use ,the three-way valve connects to an endotrachael tube through patient port and a ventilator through the breathing port.
4.Control box button activates suctioning and suction catheter can be inserted or retracted through the three-way valve into patients airway.
5.The catheter is graduated for easy identification of depth of insertion.
L Type Closed Suction System Automatic Flushing 72H Double Swivel Elbow
| Product Code | Size | Colour Code | Tube OD (mm) | Length of Tube (mm) |
| MC-07210 | Adult/72H/Endotracheal | Black | 10Fr(3.35mm) | 600mm |
| MC-07211 | Adult/72H/Endotracheal | White | 12Fr(4.05mm) | 600mm |
| MC-07212 | Adult/72H/Endotracheal | Green | 14Fr(4.75mm) | 600mm |
| MC-07213 | Adult/72H/Endotracheal | Orange | 16Fr(5.45mm) | 600mm |
| MC-07200 | Adult/72H/Tracheostomy | Black | 10Fr(3.35mm) | 300mm |
| MC-07201 | Adult/72H/Tracheostomy | White | 12Fr(4.05mm) | 300mm |
| MC-07202 | Adult/72H/Tracheostomy | Green | 14Fr(4.75mm) | 300mm |
| MC-07203 | Adult/72H/Tracheostomy | Orange | 16Fr(5.45mm) | 300mm |
L Type Closed Suction System Automatic Flushing 72H Double Swivel Elbow
