| Place of Origin: | China |
|---|---|
| Brand Name: | MCreat |
| Certification: | CE, ISO |
| Model Number: | MC-02400 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | Depends on Order Quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100, 000PCS/Month |
| Type Of Sterilization:: | Ethylene Oxide Sterilization | Quality Guarantee Period:: | Five Years |
|---|---|---|---|
| Logo Printing: | Customized | OEM: | Printed Logo |
| Certificate: | CE/ISO13485 | Packaging: | Blister |
| High Light: | 5Fr 300mm Closed Circuit Suction Catheter,Closed Circuit Suction Catheter For ICU,5Fr inline suction catheter |
||

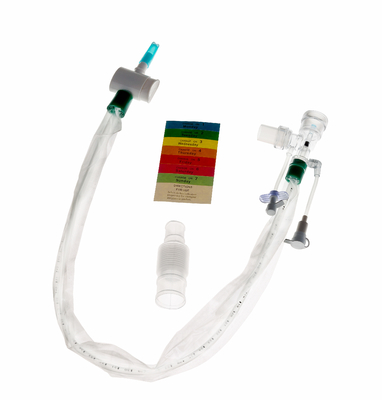

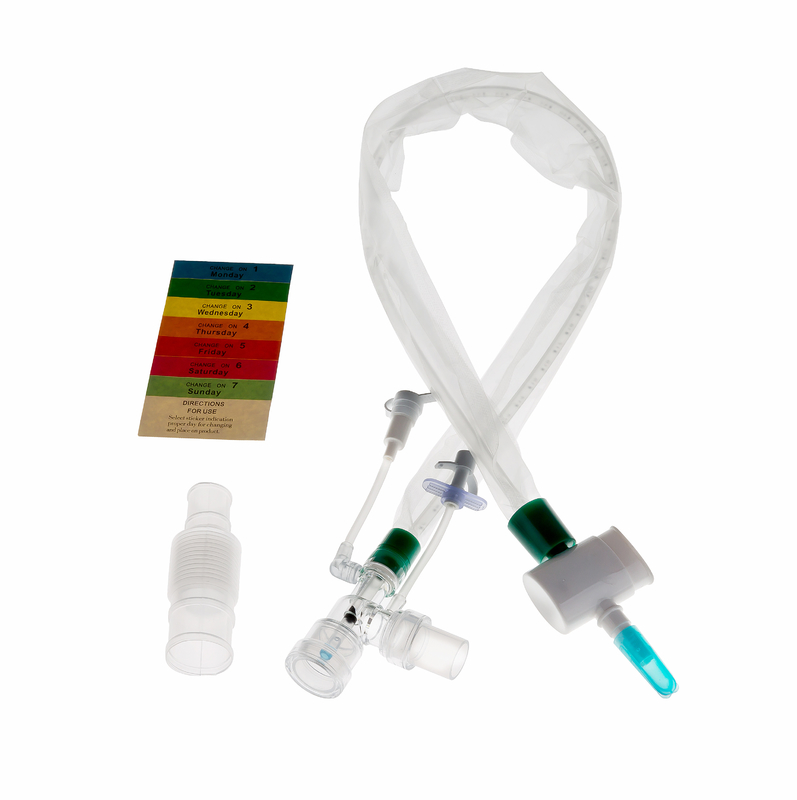

Closed Suction Catheter (L-Piece) 24H Tracheostomy 5Fr 300mm
Features
- Continuous Breathing
Simultaneously ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Double Swivel Connector
15mm connector of Double Swivel
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton
-Delivery Time: Within 20 days. It depends on the quantity of order
Product Description
| Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
| Grey | Neonatal/24H/Tracheostomy | Double Swivel Elbow Tracheostomy, Built in MDI Adapter, Flex Tube | 5Fr (1.7mm) | 300mm | MC-02400 |
| Light Green | Neonatal/24H/Tracheostomy | Double Swivel Elbow Tracheostomy, Built in MDI Adapter, Flex Tube | 6Fr (1.95mm) | 300mm | MC-02401 |
| Grey | Neonatal/24H/Endotracheal | Double Swivel Elbow Endotracheal, Built in MDI Adapter, Flex Tube | 5Fr (1.7mm) | 300mm | MC-02410 |
| Light Green | Neonatal/24H/Endotracheal | Double Swivel Elbow Endotracheal, Built in MDI Adapter, Flex Tube | 6Fr (1.95mm) | 300mm | MC-02411 |
We can produce the closed suction catheter according to customers' requirements.
Instructions for Use
*Set up Procedure
1. Inspect the product before use. Do not use it if the package is not intact.
2. Open the sealed package and take out the product.
3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.
4. Connect ventilator tube to the Revolvable Ventilator Connector.
5. Attach the date label to the color ring.
6. Before suctioning commences ensure that the cap of the MDI Port/ irrigation Port is closed.
7.Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/ Tracheostomy tube.
*Suctioning Procedure
Caution-always use the recommended vacuum levels./Consider length of suctioning time
1.Grip the three-way adaptor in one hand and with the other hand feed the suction
a catheter into the Endotracheal tube/ Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.
2.Once the suction catheter is in the desired position/ depth depress the vacuum
Control valve to apply suction.
3. Remove the suction catheter until the protective sleeve is straight.
4.Repeat steps1-3 as necessary.
